Sensor Lead (M12) 20m

Name: Sensor Lead (M12) 20m
SKU: LAPP-22260933
Price: 118.00 NZD
Availability: InStock

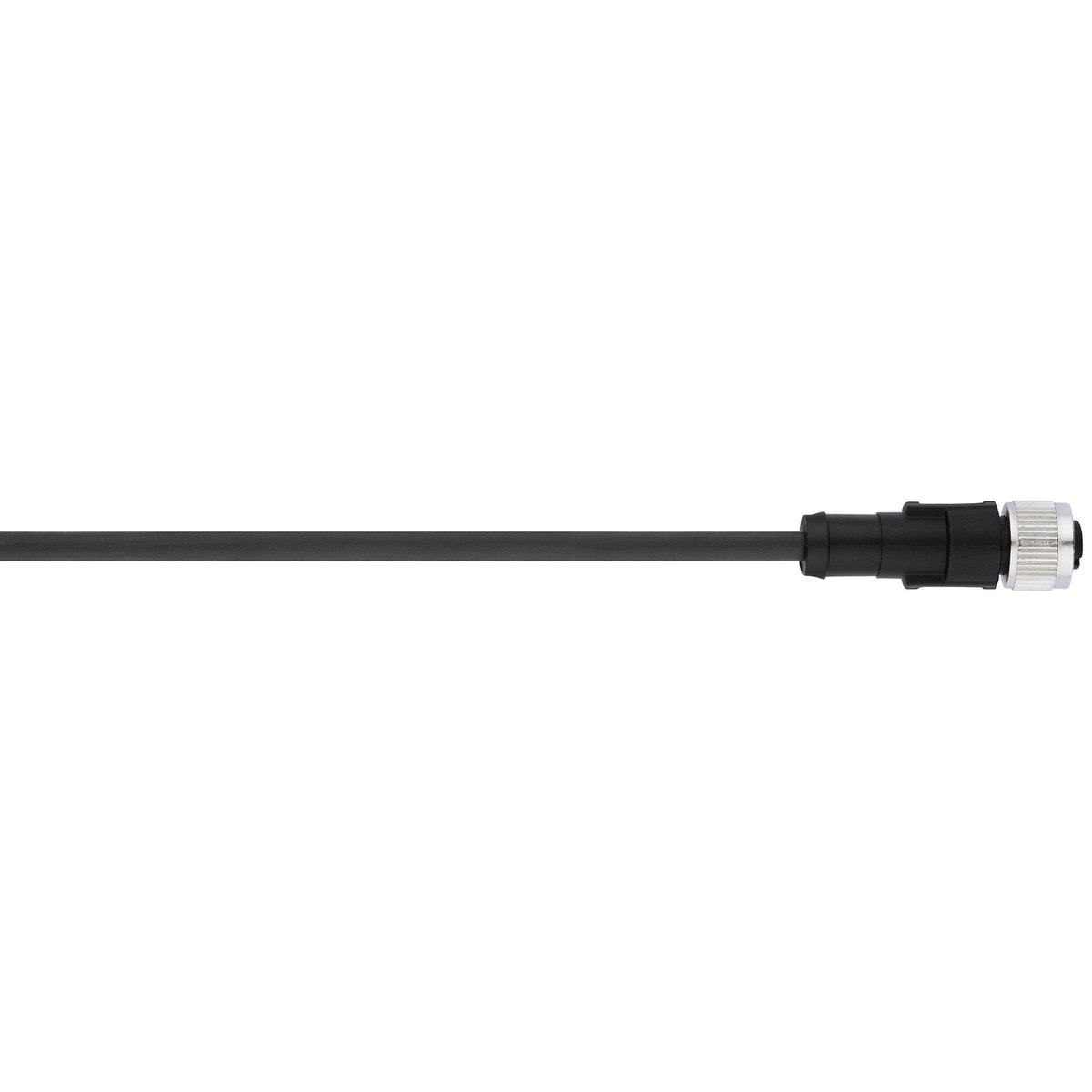

Sensor Lead (M12 Angled) 4 Pole Female with 20m lead

$118.00 (Each excl GST)

(Each excl GST)

Global Stock

SKU: LAPP-22260933 Manufacturer part number: LAPP-22260933 Price breaks available:

Select or Type Quantity

SKU: LAPP-22260933 Manufacturer part number: LAPP-22260933 Price breaks available:

Free shipping on Web orders over $100

Overview
Downloads
Ask A Specialist

M12 plug/socket on free conductor end

Sensor/Actuator-cable,connecting cable 4-pole, M12 connector/M12 socket on free conductor end, A-codiert, PUR LSZH, IP65/IP67/IP68, suitable for drag chains

Benefits

Cost-saving due to quick and easy installation
Space-saving due to compact dimensions
Fast and easy error tracking
Integrated vibration protection (mechanical lock-in)
Gold-plated contacts for low transfer resistance

Application range

For increased mechanical stress and harsh operating conditions

Product features

UV-resistant
Good resistance to oils and chemicals
PWIS and PVC free
Suitable for drag chains
Including tag carrier

Norm references / Approvals

Halogenfree according to DIN VDE 0472
UL File Number: E249137
Flame-retardant according to UL 1581 FT-2

Product Make-up

wire cross-section: 0,34 mm²
(8-pin: 0,25 mm²)
Colour-code:
3-pin: bn (1), bu (3), bk (4)
4-pin: bn (1), wh (2), bu (3), bk (4)
5-pin: bn (1), wh (2), bu (3), bk (4), gn/ye (5)
8-pin: wh (1), bn (2), gn (3), ye 4), gy (5), pk (6), bu (7), rd (8)
Outer sheath: PUR, black

Minimum bending radius

Fixed installation: 5 x outer diameter
Flexing: 10 x outer diameter

Protection rating

IP65/IP67

Ambient temperature (operation)

Plug/socket -25°C to +90°C
Fixed installation -40°C to +80°C
Flexing -25°C to +80°C

Coding

A-standard

Rated current (A)

4A
2A (8-pin)

SKU

LAPP-22260933

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Product Files

Type Name

Datasheet

UNITRONIC® SENSOR M12 AB-C4-20,0PUR-M12FS
