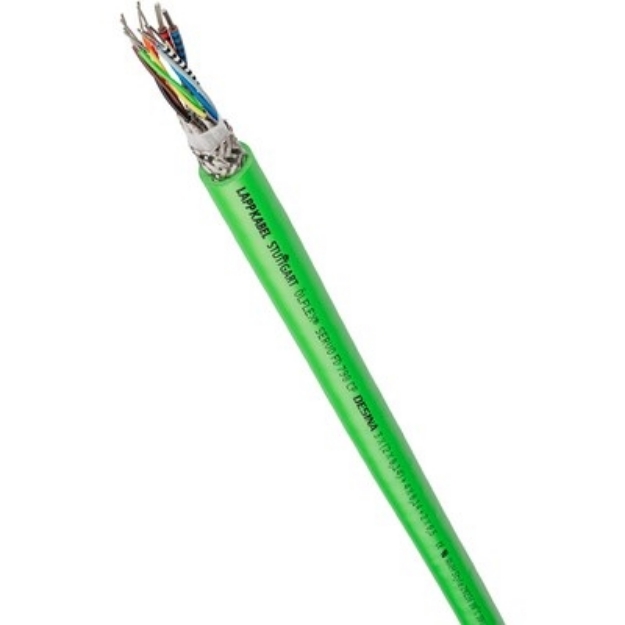

Servo (4x1+4x2x0,14+(4x0,14))

Benefits

• Allows much faster speed and accelerations which increases the economic efficiency of the machines
• Suitable for use with encoders & resolvers from leading manufacturers
• Thin, optimised for weight and volume
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Wide temperature range for applications in harsh climatic environments

Application range

• Connecting cable between servo controller and encoder/resolver
• Connecting cable between servo controller and speed generators
• In power chains or moving machine parts
• Particularly in wet areas of machine tools and transfer lines
• Assembly lines, production lines, in all kinds of machines
• For indoor and outdoor use

Product features

• Flammability:
  UL/CSA: VW-1, FT1
  IEC/EN: 60332-1-2
• Halogen-free materials
• Low-capacitance design
• Abrasion and notch-resistant
• Oil-resistant

Norm references / Approvals

• UL AWM Style 20236
• CSA AWM IA/B; IIA/B FT 1
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Fine-wire or extra-fine wire, tinned-copper conductor
• Core insulation: polypropylene (PP)
• Cores (or core pairs) twisted in layers or bundles
• Refer to data sheet for more details
• Non-woven wrapping
• PUR outer sheath, green (RAL 6018)
