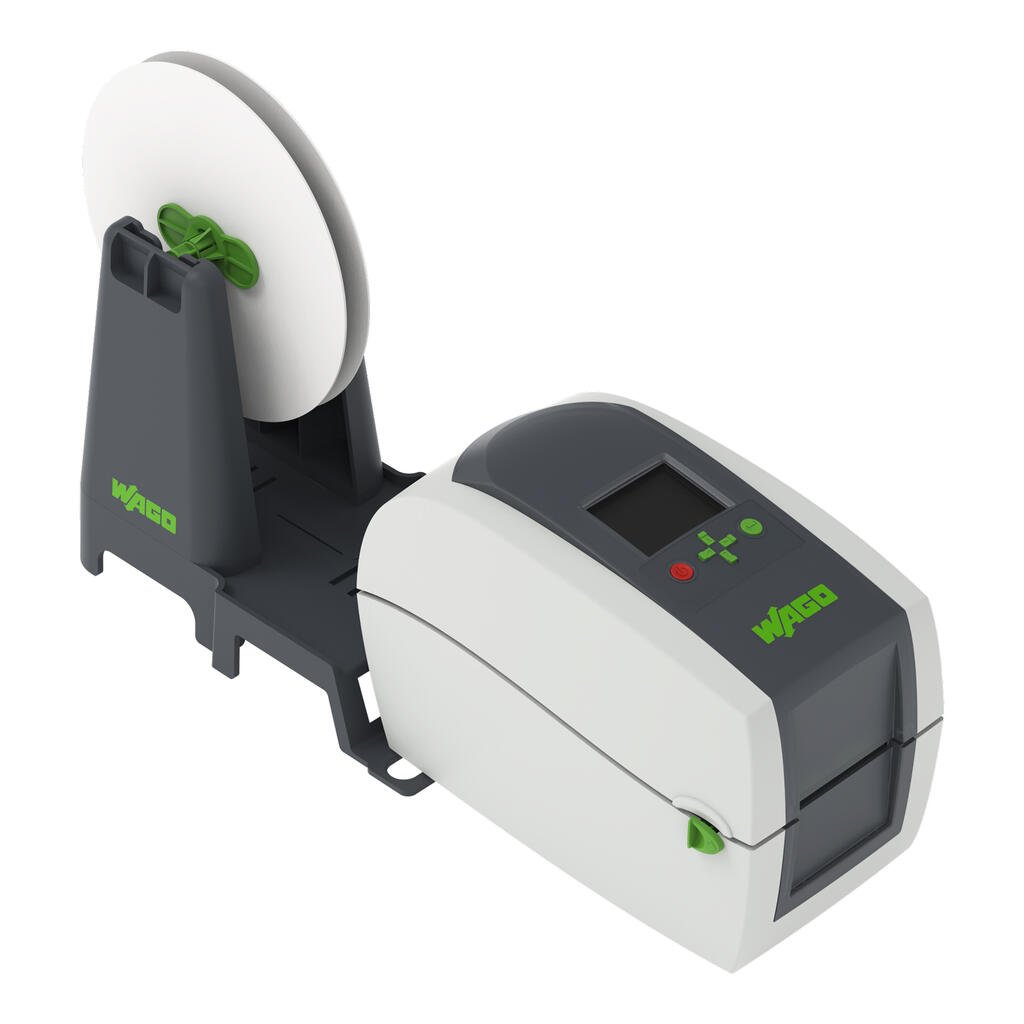

Thermal Transfer Smart Printer

The WAGO Thermal Transfer Smart Printer is a versatile solution for all control cabinet marking needs, optimizing efficiency while reducing time and costs. How? Extended intervals between ribbon changes maximize printing efficiency while the printer and marking media remain cost-effective.

The starter kit (Item No. 258-5107) includes the printer, marking media, accessories and the free WAGO Smart Script Marking Software. The Smart Printer and software can be connected via USB or an ETHERNET interface for easy setup.

The cutter is available as an accessory to automatically cut continuous material. A transport case can be purchased separately for easy carry to construction sites or other locations. Additional printers are also available to further reduce time spent switching materials.

Benefits

• WAGO Smart Script Marking Software completes the WAGO Marking System
• Intuitive, modern interface for easy operation
• Automatic cutting for significant time savings
• Supports processing of many labeling materials
• Durable, high-quality Japanese knife

Technical data

• Print head: Glass layer, spring-mounted
• Print resolution: 300
• Print resolution: 300dpi (12 pixels/mm)
• Print speed: Max. 127mm/s (WAGO recommends 50.8mm/s)
• Print width: 47mm
• Print length (max.): 762mm
• See-through/reflective sensor: Yes, centrally mounted
• Memory: 8,192MB
• Interfaces: USB type A (for BT and WiFi connection), USB type B (for PC connection), RS-232, Ethernet 10/100Mbps
• Operating voltage: 100–240VAC, 50–60Hz (automatic adjustment)
• Safety approvals: CE (EMC)
• Operating display: Color TFT LCD with navigation button
• Ink ribbon: Roll outer diameter 40 mm; Core inner diameter 12.7mm (0.5 inch); Max. length 110m; Max. width 58mm
• Ink ribbon length: 360.9
• Scope of delivery: Power supply + cable, 2 rollers (258-5006 + 258-5007), 1 reel holder, 1 ink ribbon (258-5005), Smart Script marking software and driver, USB cable, external unwinder, 1 empty cardboard core, 1 reel each of marking strips (2009-110) and WMB Inline markers (2009-115)

SKU WAGO-258-5107
MPN 258-5107
