UL PVC Drag Chain 1G6

ÖLFLEX® CHAIN 809SC, PVC sheath, UL rated, highly flexible for use in drag chains, 1G6

Free shipping on Web orders over $100

$11.00
(Per/m excl GST)
Global Stock
Quantity Breaks
1+
50+
250+
$11.00
$11.00
$11.00
SKU: LAPP-1062900 Manufacturer part number: 1062900

Benefits

  • Multi-standard certification reduces part varieties and saves costs
  • Multifunctional application possibilities
  • Under consideration of the temperature range also suitable for flexible outdoor use
  • Certified for the USA and Canada for export-oriented machine, appliance and apparatus manufacturers

Application range

  • In power chains or moving machine parts
  • For internal wiring of electric and electronic equipment in switch cabinets
  • Specially designed for power circuits of servomotors driven by frequency converters
  • This cable can substitute multi-core power cables where space requirements or minimum bending radii cause problems
  • Test systems in the automotive industry, vehicles and stationary fuel cell systems

Product features

  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Oil-resistant according to DIN EN 50290-2-22 (TM54)
  • Low-adhesive surface

Norm references / Approvals

  • Based on VDE 0250 / 0285
  • UL-AWM-Style 10107
    cRU AWM II A/B FT1
  • UL File No. E63634
  • For use in power chains: Please comply with assembly guideline Appendix T3

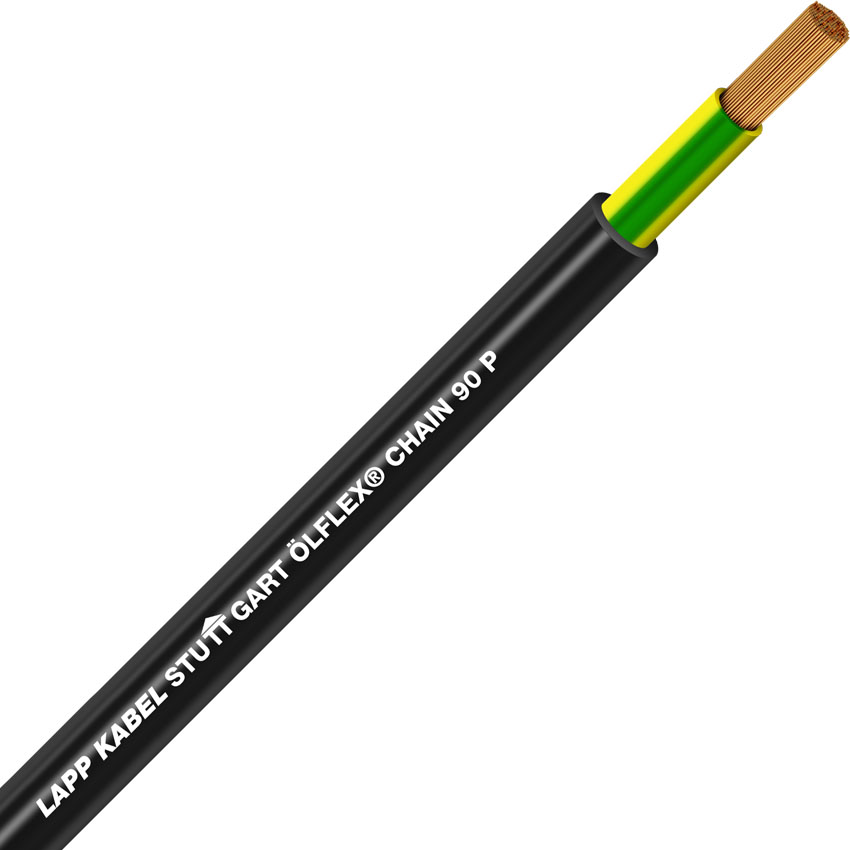

Product Make-up

  • Fine-wire, bare copper conductor
  • Core insulation: PVC
  • PVC outer sheath, black (similar RAL 9005)

SKU
LAPP-1062900
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Number of Conductors 1
Conductor Size 6mm
Colour Earth (Green / Yellow)
*
*
*
