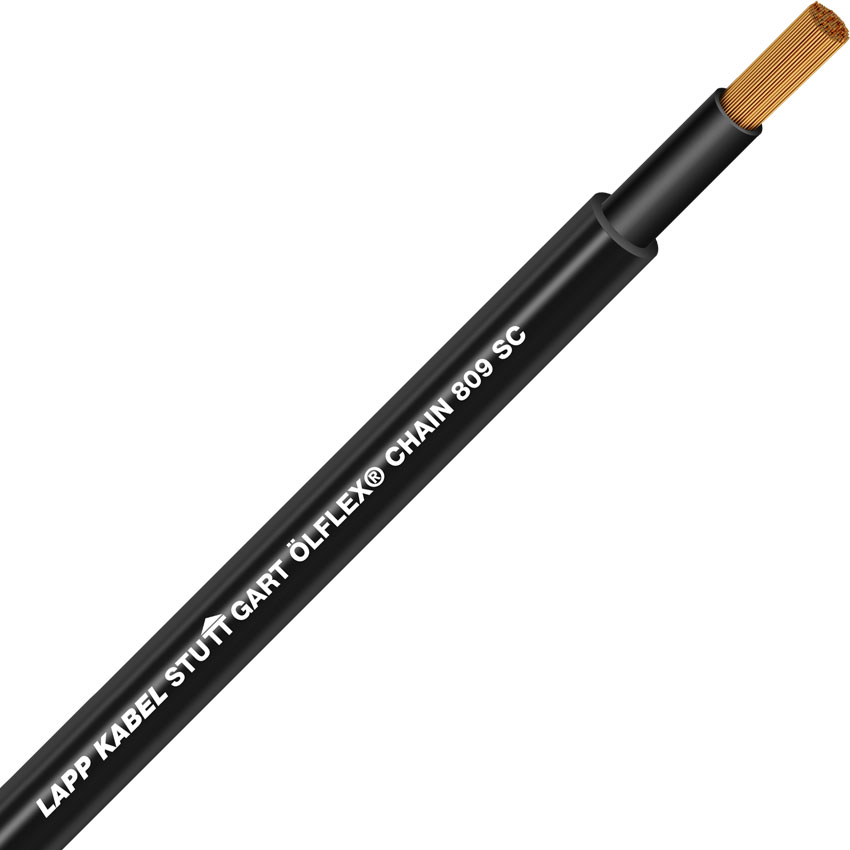

UL PVC Drag Chain 1X240

Benefits

• Multi-standard certification reduces part varieties and saves costs
• Multifunctional application possibilities
• Under consideration of the temperature range also suitable for flexible outdoor use
• Certified for the USA and Canada for export-oriented machine, appliance and apparatus manufacturers

Application range

• In power chains or moving machine parts
• For internal wiring of electric and electronic equipment in switch cabinets
• Specially designed for power circuits of servomotors driven by frequency converters
• This cable can substitute multi-core power cables where space requirements or minimum bending radii cause problems
• Test systems in the automotive industry, vehicles and stationary fuel cell systems

Product features

• Flammability:
  UL/CSA: VW-1, FT1
  IEC/EN: 60332-1-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• Low-adhesive surface

Norm references / Approvals

• Based on VDE 0250 / 0285
• UL-AWM-Style 10107
  cRU AWM II A/B FT1
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Fine-wire, bare copper conductor
• Core insulation: PVC
• PVC outer sheath, black (similar RAL 9005)
