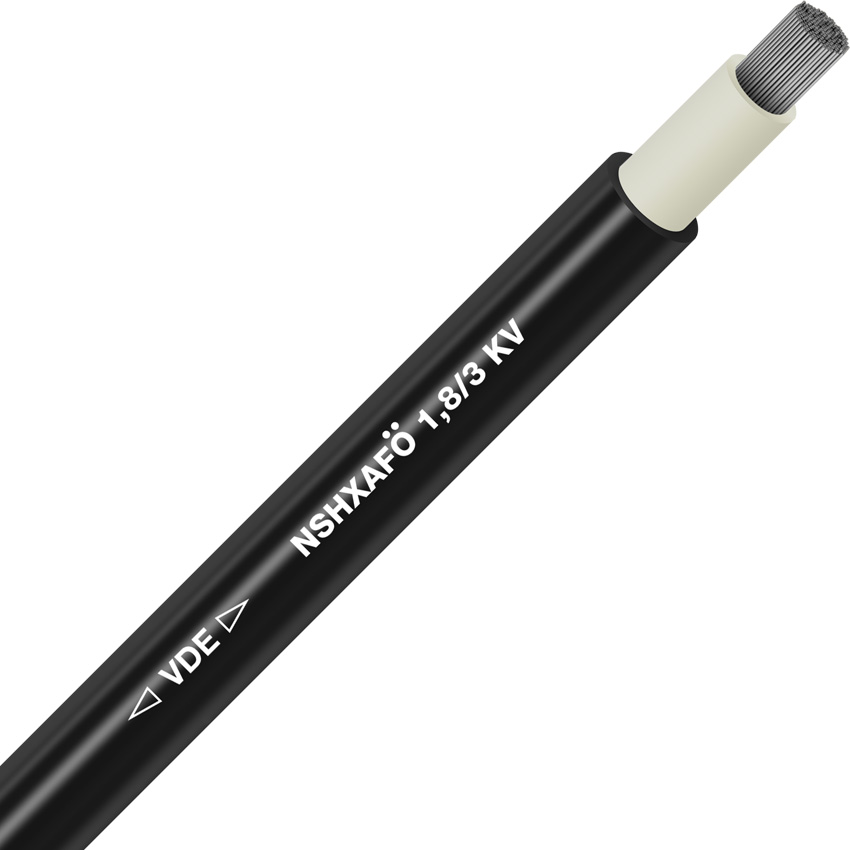

VDE NSHXAFO 1.8/3Kv 1X50 Bk

Benefits

• Arrangements made of single-conductor cables NSHXAFö in accordance with VDE 0250 Part 606 with nominal voltage of at least U0/U: 1.8/3 kV can be used for short circuit-proof and short-to-ground-proof installation up to 1000 V in acc. with VDE 0100 Part 520 and VDE 0298 Part 3

Application range

• Wiring of machines, tools, devices, appliances and control cabinets
• Railway vehicles, buses;
  short-circuit-proof up to 1000 V in switching stations and power distributors
• No direct burial, except of lead-through through fire separations such as sand cups
• In ducts, tubes, pipes, conduits and closed installation channels
• Bundled or for connection of movable parts

Product features

• Halogen-free: to protect human life and valuable assets in the event of a fire, through low smoke density and low amount of corrosive gases
• Flame-retardant according IEC 60332-1-2
• Normative rated voltage class 3.6/6 kVac available on request
• The outer diameters stated in the part number table are maximum values

Norm references / Approvals

• <VDE> NSHXAFÖ 1,8/3 kV cable type approval according to VDE 0250-606

Product Make-up

• Fine copper wire strands
• Core insulation: halogen-free rubber compound, type 3GI3
• Outer coating: halogen-free polymer compound, type HM3
