Yellow Reeling 4G25

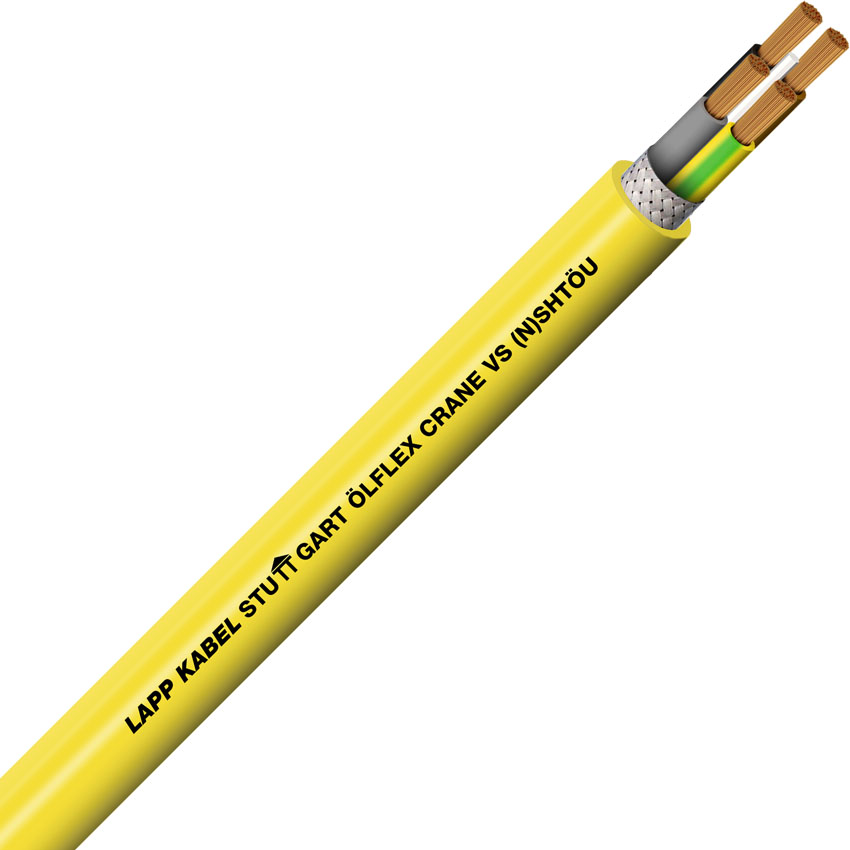

ÖLFLEX® CRANE VS (N)SHTOU, Rubber sheath, yellow reeling cable, medium to high mechanical stress 4G25 (3 + E)

$235.00

(Per/m excl GST)
Global Stock
Login for stock
Select or Type Quantity
SKU: LAPP-00440243 Manufacturer part number: 00440243 Price breaks available:

Free shipping on Web orders over $100

Benefits

  • The central supporting element absorbs the tensile loads that occur, thereby allowing reeling, unreeling and deflection for free-hanging cables even over large distances.
  • Reeling, unreeling and guiding operations also impose tensile stresses on the cables
  • Integrated supporting braid prevents undesirable cable twists, and the formation of so-called corkscrew effects

Application range

  • For use in hoists, transport and conveyor
    systems
  • Cables are reeled, unreeled, and guided by roller trains
  • In dry or damp interiors, outdoors, or not more than 2 weeks without interruption in industrial water
  • The application profiles for ÖLFLEX® CRANE and ÖLFLEX® LIFT cables can be found in the appendix, selection table A3
  • The assembly and handling guidelines for ÖLFLEX® CRANE cables can be found in the catalogue appendix, technical table T4; for ÖLFLEX® LIFT cables please see the catalogue appendix, technical table T5

Product features

  • Flame-retardant according IEC 60332-1-2
  • Oil-resistant according to EN 60811-404
  • Good chemical, thermal and mechanical-resistance

Norm references / Approvals

  • Based on VDE 0250-814 (NSHTÖU)

Product Make-up

  • Strands of tinned-copper wires
  • Core insulation: rubber compound, type 3GI3
  • Central supporting element
  • Support braid integrated in the outer sheath
  • Outer sheath: rubber compound, type 5GM5

SKU
LAPP-00440243
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Number of Conductors 4
Conductor Size 25mm
Colour Yellow
*
*
*
