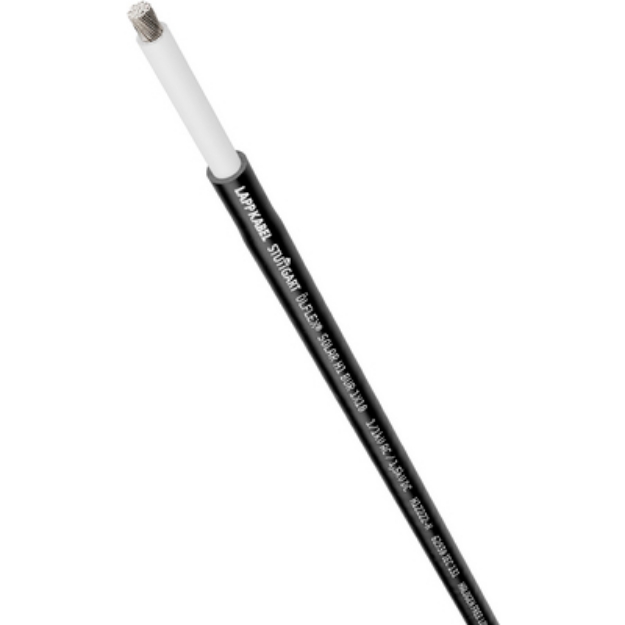

ÖLFLEX® Solar H1 BUR 1x6 Black

Benefits

• Halogen-free core insulation and sheath compound to meet special fire protection requirements
• Transverse watertightness allows permanent submersion in shallow, uncontaminated water: AD8 in accordance with IEC 60364-5-51 and IEC 62440
• Due to its increased mechanical strength, it is suitable for underground installation in a cable trench with a sand bed, tested using the "Impact-Resistance Test" and the "Crushing-Resistance Test" in accordance with UL 854
• Cross-linked insulation and sheath materials promote longevity at high temperatures or at high current load, and provide high dielectric strength and a high short-circuit temperature
• IEC certification allows international use of the product in countries in which the IEC standards are applicable

Application range

• For floating PV/ canal top installations where cables are in contact with water or exposed to high humidity (see data sheet for more details)
• For underground installation, for example in conduits which water, heat, and moisture may accumulate in
• Suitable for direct burial: see data sheet

Product features

• Weather/UV-resistant acc. to EN 50618
• Ozone-resistant according to EN 50396
• Halogen-free and flame-retardant
• Good notch and abrasion resistance
• Tested against burial-related, mechanical UL 854 Tests Impact-Resistance and Crushing-Resistance

Norm references / Approvals

• H1Z2Z2-K type-certified by TÜV as per EN 50618
• 62930 IEC 131 type-certified by TÜV as per IEC 62930

Product Make-up

• Fine-wire, tinned-copper conductor
• Core insulation: Crosslinked XLPE within the group of XLPO's
• Outer sheath: Crosslinked XLPE within the group of XLPO's
• Outer sheath colour: black, red or blue
