+180°C Harsh Conditions 16G1.5

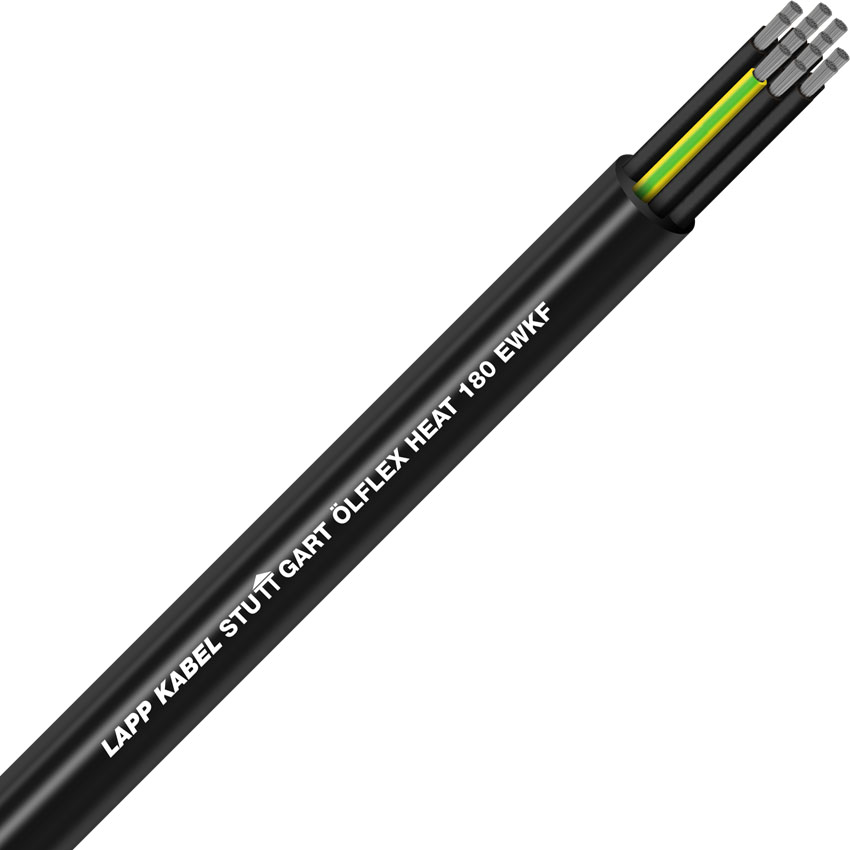

ÖLFLEX® HEAT 180 EWKF, -50°C to +180°C, EWKF silicone sheath for harsh applications, halogen-free (numbered-cores) 16G1.5 (15 + E)

Free shipping on Web orders over $100

$68.00
(Per/m excl GST)
Global Stock
SKU: LAPP-0046117 Manufacturer part number: 0046117

Benefits

  • Longer durability in harsh applications than conventional silicone cables
  • Notch and tear-resistant silicone compounds reduce damage due to mechanical stress
  • Due to the use of special additives in EWKF silicone, armoured cable versions will not be required
  • Flexibility simplifies installation where space is limited
  • Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

  • Areas with high ambient temperatures and occasionally mechanical stress
  • Typical fields of application
    - Steel, ceramic and iron works
    - Bakery equipment and industrial furnaces
    - Electric motor industry
    - Sauna/solarium construction
    - Thermal and heating elements
    - Lighting technology
    - Ventilator engineering
    - Air-conditioning technology
    - Galvanisation technology

Product features

  • EWKF:
    Initial tear propagation and notch resistance
  • Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2), flame-retardant (IEC 60332-1-2)
  • Good hydrolysis and UV-resistance
  • Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
  • Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

  • Based on EN 50525-2-83

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Core insulation: based on EWKF silicone
  • Cores twisted together
  • Outer sheath: silicone-based EWKF, notch-resistant, black

Temperature range

  • -60 °C to +180 °C
    (adequate ventilation required)

SKU
LAPP-0046117
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Number of Conductors 16
Conductor Size 1.5mm
Colour Black
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Benefits

  • Longer durability in harsh applications than conventional silicone cables
  • Notch and tear-resistant silicone compounds reduce damage due to mechanical stress
  • Due to the use of special additives in EWKF silicone, armoured cable versions will not be required
  • Flexibility simplifies installation where space is limited
  • Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

  • Areas with high ambient temperatures and occasionally mechanical stress
  • Typical fields of application
    - Steel, ceramic and iron works
    - Bakery equipment and industrial furnaces
    - Electric motor industry
    - Sauna/solarium construction
    - Thermal and heating elements
    - Lighting technology
    - Ventilator engineering
    - Air-conditioning technology
    - Galvanisation technology

Product features

  • EWKF:
    Initial tear propagation and notch resistance
  • Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2), flame-retardant (IEC 60332-1-2)
  • Good hydrolysis and UV-resistance
  • Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
  • Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

  • Based on EN 50525-2-83

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Core insulation: based on EWKF silicone
  • Cores twisted together
  • Outer sheath: silicone-based EWKF, notch-resistant, black

Temperature range

  • -60 °C to +180 °C
    (adequate ventilation required)

SKU
LAPP-0046117
Products specifications
Attribute name Attribute value
Number of Conductors 16
Conductor Size 1.5mm
Colour Black
