Diffuse mode sensor OBD500-18GM60-E5-V1-IR-1C

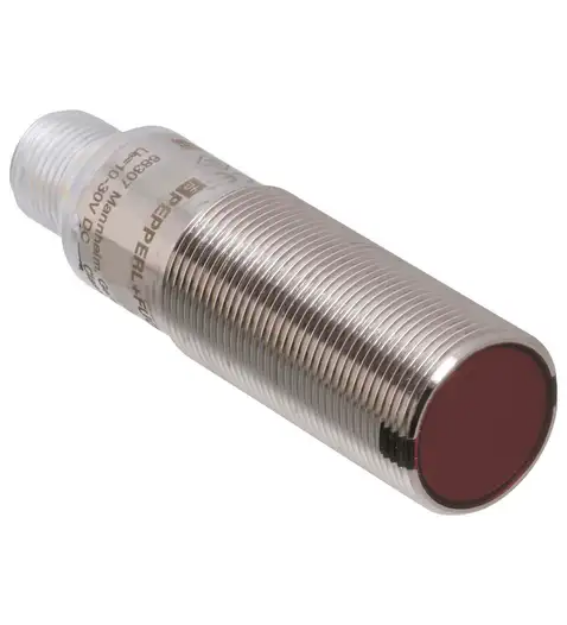

Diffuse Mode Sensor OBD500-18GM60-E5-V1-IR-1C

The optical sensors of this series have an M18 threaded housing that is optionally available in plastic or metal. The sensors are robust and versatile. Focusing on the essential requirements simplifies selection and commissioning, saving time and costs.

• Strong metallic housing in cylindrical shape M18 x 1
• Operating distance adjustable
• Not sensitive to ambient light
• Degree of protection IP67
• High operating distance

Technical Details

• General specifications
• Detection range: 0 ... 500mm
• Detection range min.: 0 ... 30mm
• Detection range max.: 0 ... 500mm
• Adjustment range: 30 ... 500mm
• Reference target: standard white 200mm X 200mm
• Light source: IRED
• Light type: infrared
• Diameter of the light spot: approx. 52mm at 500mm
• Opening angle: approx. 2.6°
• Optical face: frontal
• Ambient light limit: EN 60947-5-2 10000 Lux
• Hysteresis: H < 15%
• Functional safety related parameters
• MTTFd: 854 a
• Mission Time (TM): 20a
• Diagnostic Coverage (DC): 0%
• Indicators/operating means
• Operation indicator: LED green: on - power on flashing (4Hz) - short circuit
• Function indicator: LED yellow: permanently lit - output active permanently off - output inactive
• Control elements: sensitivity adjustment
• Control elements: light/dark on electrically switchable
• Electrical specifications
• Operating voltage UB: 10 ... 30VDC
• Ripple max.: 10%
• No-load supply current I0: < 25mA
• Protection class: III
• Output
• Switching type: The switching type of the sensor is adjustable. The default setting is: Q - Pin4: PNP output / light-on L/D-On - Pin2: Low-active input
• Signal output 1: PNP output, short-circuit protected, reverse polarity protected, open collector
• Switching voltage max.: 30VDC
• Switching current max.: 100mA , resistive load
• Voltage drop Ud: ≤ 2VDC
• Switching frequency f: 500Hz
• Response time: ≤ 1 ms
• Conformity
• Product standard: EN 60947-5-2
• Approvals and certificates: UL approval E87056 , cULus Listed , class 2 power supply , type rating 1
• Ambient conditions
• Ambient temperature: -40 ... 60°C (-40 ... 140°F)
• Storage temperature: -40 ... 70°C (-40 ... 158°F)
• Mechanical specifications
• Degree of protection: IP67
• Connection: 4-pin, M12 x 1 connector
• Material
• Housing: brass, nickel-plated
• Optical face: PMMA
• Connector: Plastic
• Mass: approx. 23 g

SKU PF-70113328-100148
MPN OBD500-18GM60-E5-V1-IR-1C
