Screw Terminal - 95mm -WTN - Earth

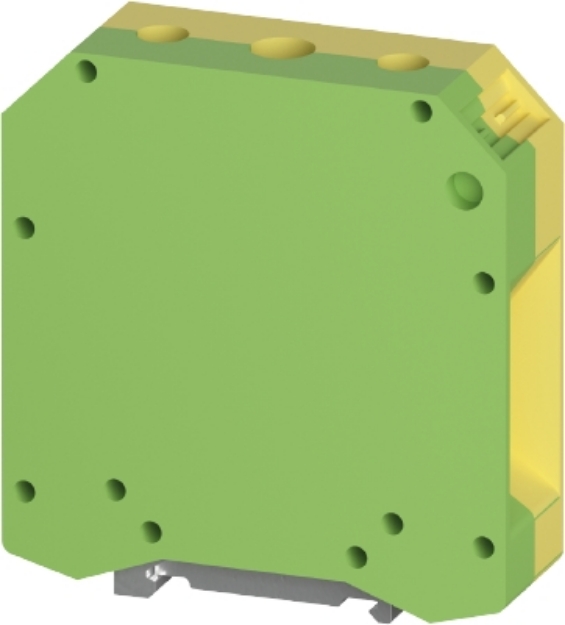

Earth Terminal WTN 95 PE

The WTN 95 PE earth terminal is designed for secure protective conductor connections on DIN rails. It features a 95 mm² nominal cross section, screw connection, green/yellow insulation, and a rated voltage of 1000 V.

Technical Details

• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Nominal cross section: 95 mm²
• Color: green/yellow
• Number of levels: 1
• Number of clamp positions per level: 3
• Width/grid dimension: 25 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: screw connection
• Halogen free: yes
• Closing plate required: no
• Length: 80 mm
• Width: 25 mm
• Height: 89.9 mm
• Minimum cross section solid: 35 mm²
• Maximum cross section solid: 95 mm²
• Minimum cross section fine stranded: 35 mm²
• Maximum cross section fine stranded: 95 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 35 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 95 mm²
• Wire strip length: 25 mm
• Torque conductor mounting: 17.9 Nm
• Cross section UL: 2-4/0 AWG
• Voltage UL: 600 V
• Cross section CSA: 2-4/0 AWG
• Voltage CSA: 600 V

SKU WIE-5D.S95.9055.0
MPN 5D.S95.9055.0
EAN 4049088725715
