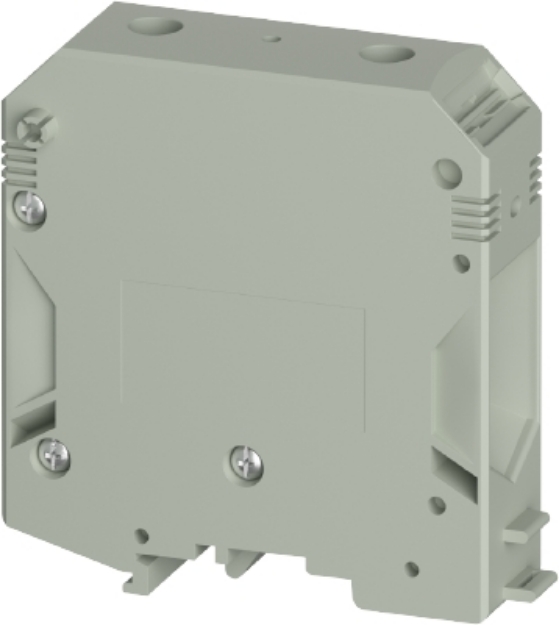

Screw Terminal - 95mm -WTN - Grey

Feed-Through Terminal WTN 95

The Wieland WTN 95 feed-through terminal is designed for high-capacity electrical connections with a rated voltage of 1000 V and rated current of 232 A. It features a screw connection, DIN rail mounting, a 95 mm² nominal cross section, and a grey PA insulating housing.

Technical Details

• Rated voltage: 1000 V
• Rated current: 232 A
• Rated impulse voltage: 8 kV
• Nominal cross section: 95 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 32.2 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: screw connection
• Halogen free: yes
• Pollution degree: 3
• Closing plate required: no
• Length: 80 mm
• Width: 25 mm
• Height: 89.4 mm
• Minimum cross section solid: 35 mm²
• Maximum cross section solid: 95 mm²
• Minimum cross section fine stranded: 35 mm²
• Maximum cross section fine stranded: 95 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 35 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 95 mm²
• Wire strip length: 26 mm
• Torque conductor mounting: 10 Nm
• Cross section UL: 2-4/0 AWG
• Voltage UL: 600 V
• Current factory wiring: 230 A
• Current field wiring: 230 A
• Cross section CSA: 2-4/0 AWG
• Voltage CSA: 600 V
• Current CSA: 230 A
• ETIM 9.0: EC000897

SKU WIE-5D.S95.0055.0
MPN 5D.S95.0055.0
EAN 4049088725661
