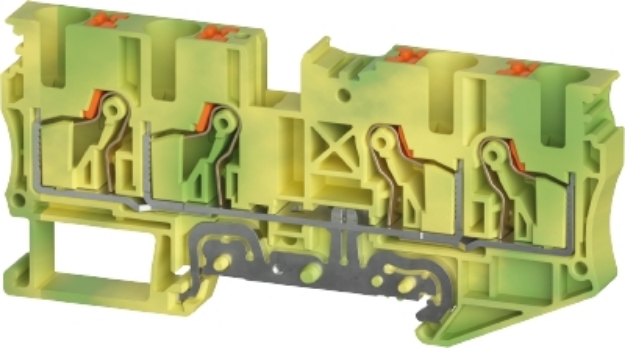

Push Terminal - 6mm - WTPN - Earth

Name: Push Terminal - 6mm - WTPN - Earth
SKU: WIE-5D.206.9255.0
Price: 840.00 NZD
Availability: InStock

4 Pole, earth terminal WTPN 6 D2/2 PE rated voltage 1000V, push connection

$840.00 (50 Pack excl GST)

(50 Pack excl GST)

On Request

SKU: WIE-5D.206.9255.0 Manufacturer part number: 5D.206.9255.0 Manufacturer: WIELAND Price breaks available:

Select or Type Quantity

SKU: WIE-5D.206.9255.0 Manufacturer part number: 5D.206.9255.0 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Earth Terminal WTPN 6 D2/2 PE

The WTPN 6 D2/2 PE earth terminal is designed for safe electrical installations with a 1000 V rated voltage and push-in connections. It features a green/yellow thermoplastic housing for DIN rail mounting and accommodates solid and fine-stranded conductors.

Technical Details

Nominal cross section: 6 mm²
Color: green/yellow
Number of levels: 1
Number of clamp positions per level: 2
Width/grid dimension: 8 mm
Insulating housing: PA
Inflammability class of insulation material acc. with UL94: V0
Mounting method: DIN rail (top hat rail)
Terminal blocks for electrical installations: yes
Connection type: push-in connection
Halogen free: yes
Rated voltage: 1000 V
Rated impulse voltage: 8 kV
Pollution degree: 3
Closing plate required: yes
Type of insulation material: thermoplastic
Length: 91.4 mm
Width: 8 mm
Height: 43.5 mm
Connection type 1: plug-in connection
Minimum cross section solid: 0.5 mm²
Maximum cross section solid: 10 mm²
Minimum cross section fine stranded: 0.5 mm²
Maximum cross section fine stranded: 6 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.5 mm²
Maximum conductor cross section (flex., stranded) with cable end sleeve: 6 mm²
Wire strip length: 12 mm
Cross section UL: 20-8 AWG
Voltage UL: 600 V
Cross section CSA: 20-8 AWG
Voltage CSA: 600 V

SKU WIE-5D.206.9255.0
MPN 5D.206.9255.0
EAN 4049088719622

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Conductor Size	6mm
Number of Poles	4
Clamp Type	Push
Colour	Green
Number of Decks	Single
Voltage	1000V

Product Files

Type Name

Wieland Din Rail Catalogue

Catalogue
