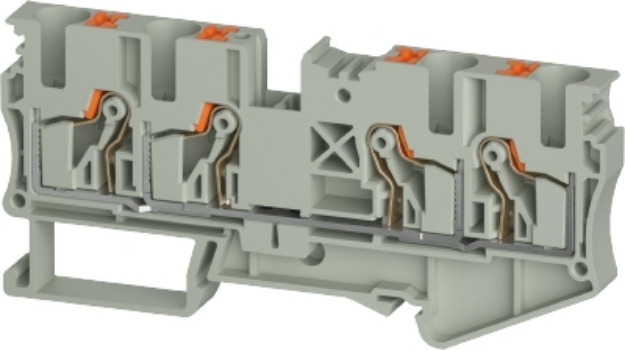

Push Terminal - 6mm -WTPN - Grey

Feed-Through Terminal WTPN 6 D2/2

A grey Wieland WTPN 6 D2/2 feed-through terminal with a 6 mm² nominal cross section, push-in connection and DIN rail mounting. It supports conductors from 0.5 to 10 mm², with a rated current of 41 A and rated voltage of 1000 V.

Technical Details

• Nominal cross section: 6 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 8 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Connection type: push-In connection//true
• Halogen free: yes
• Rated current: 41 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 91.4 mm
• Width: 8 mm
• Height: 43.5 mm
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.5 mm²
• Maximum cross section solid: 10 mm²
• Minimum cross section fine stranded: 0.5 mm²
• Maximum cross section fine stranded: 6 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.5 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 6 mm²
• Wire strip length: 12 mm
• Cross section UL: 20-8 AWG
• Voltage UL: 600 V
• Current factory wiring: 40 A
• Current field wiring: 40 A
• Cross section CSA: 20-8 AWG
• Voltage CSA: 600 V
• Current CSA: 40 A

SKU WIE-5D.206.5155.0
MPN 5D.206.5155.0
EAN 4049088719608
