Sorry - this product is no longer available

DC MCB, 25A, 1000V DC

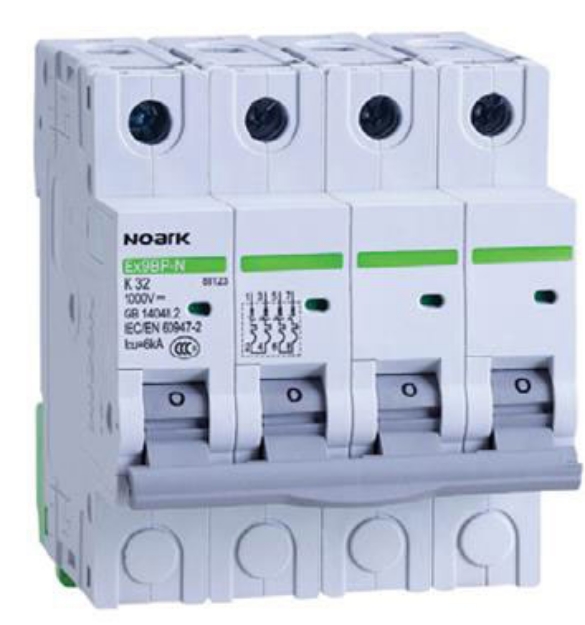

Noark Ex9BP-N, 4P, 25A, 1000V DC, Non-Polarised, K-Curve MCB

NOARK K Type circuit breakers are specifically designed for DC Solar applications.

Most traditional MCBs are designed only for AC applications. AC voltages are quite easy to break because the voltage is alternating from top to zero many times per second. However with DC applications the voltage is always at the top. Therefore it will jump as the breaker tries to open. This means DC breakers must be especially designed to open faster, further and extinguish the voltage arc quickly.


To achieve the 1000V DC rating each pole is looped internally through two break points. This means this breaker looks like a 4 pole, however it is actually only 2 poles (+Vdc and 0Vdc).

Features
• 2 Pole
• 1000V DC Rated
• Non Polarised
• K Type – For DC
• 6kA
• Tested to IEC/EN/AS 60947-2


New Zealand Regulations
An sDoc for these breakers is available on request. Please use the contact form or free phone 0800 849 2211

SKU
PV-88078
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Current Rating (A) 25
Voltage 1000Vdc
*
*
*
