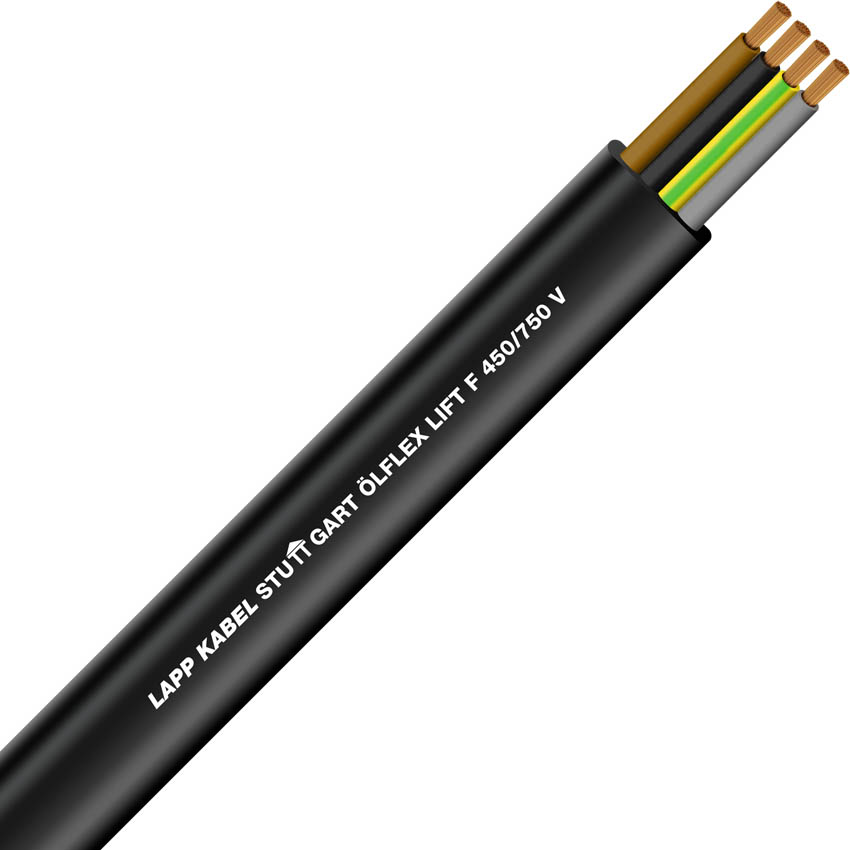

Flat Lift Flex 4G2.5 450/750V

ÖLFLEX® LIFT F, flat, flexible, hoisting and conveyor systems PVC sheath 4G2.5 450/750V (3 + E)

$24.90

(Per/m excl GST)
Global Stock
Login for stock
Select or Type Quantity
SKU: LAPP-00420073 Manufacturer part number: 00420073 Price breaks available:

Free shipping on Web orders over $100

Benefits

  • Flat cables need less space than round cables
  • Smaller bending radii is possible

Application range

  • For hoisting equipment and conveyor systems
  • Indoor cranes and high-rack facilities
  • As supply line for moving machine parts
  • According to VDE definition, this can also be used as a lift control cable with up to 35 m suspension length, and a maximum speed of travel at 1.6 m/s
  • The application profiles for ÖLFLEX® CRANE and ÖLFLEX® LIFT cables can be found in the appendix, selection table A3

Product features

  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • Based on EN 50214/ VDE 0283-2 (H05VVH6-F or H07VVH6-F)
  • Meets the requirements of the harmonised PVC flat cable H07VVH6-F

Product Make-up

  • Conductor made of bare copper wires
  • Core insulation: Based on PVC
  • Outer sheath: Based on PVC

SKU
LAPP-00420073
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Number of Conductors 4
Conductor Size 2.5mm
Colour Black
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Benefits

  • Flat cables need less space than round cables
  • Smaller bending radii is possible

Application range

  • For hoisting equipment and conveyor systems
  • Indoor cranes and high-rack facilities
  • As supply line for moving machine parts
  • According to VDE definition, this can also be used as a lift control cable with up to 35 m suspension length, and a maximum speed of travel at 1.6 m/s
  • The application profiles for ÖLFLEX® CRANE and ÖLFLEX® LIFT cables can be found in the appendix, selection table A3

Product features

  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • Based on EN 50214/ VDE 0283-2 (H05VVH6-F or H07VVH6-F)
  • Meets the requirements of the harmonised PVC flat cable H07VVH6-F

Product Make-up

  • Conductor made of bare copper wires
  • Core insulation: Based on PVC
  • Outer sheath: Based on PVC

SKU
LAPP-00420073
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Number of Conductors 4
Conductor Size 2.5mm
Colour Black
