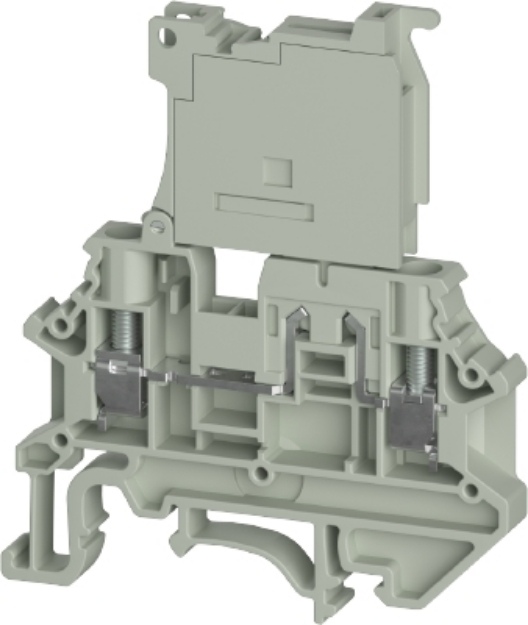

Screw Fuse Mounted Terminal WTN 4

Screw Fuse Mounted Terminal WTN 4

Fuse terminal WTN 4 SL FSI 5X20 is a 2-pole, single-level, grey, screw-connection solution for reliable electrical termination and distribution. Key characteristics include a nominal conductor size of 4 mm², a rated voltage of 800 V, a rated current of 6.3 A, din rail (top hat rail) mounting, and PA insulation. Additional design features include a 6.1 mm grid width, UL94 V0 flammability performance, and halogen-free construction.

Technical Details

• Net weight single part: 12.53 g
• Nominal cross section: 4 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 6.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Halogen free: yes
• Rated current: 6.3 A
• Rated voltage: 800 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 57.8 mm
• Width: 6.1 mm
• Height: 70 mm
• Connection type: screw connection
• Connection type 1: screw connection
• Minimum cross section solid: 0.34 mm²
• Maximum cross section solid: 6 mm²
• Minimum cross section fine stranded: 0.34 mm²
• Maximum cross section fine stranded: 4 mm²
• Minumum conductor cross section (flex., stranded) with cable end sleeve: 0.5 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 2.5 mm²
• Wire strip length: 10 mm
• Torque conductor mounting: 0.5 Nm
• Cross section UL: 22-10 AWG
• Voltage UL: 600 V
• Current factory wiring: 10 A
• Current field wiring: 10 A
• Cross section CSA: 22-10 AWG
• Voltage CSA: 600 V
• Current CSA: 10 A

SKU WIE-5D.SB4.4455.0
MPN 5D.SB4.4455.0
EAN 4049088725944
