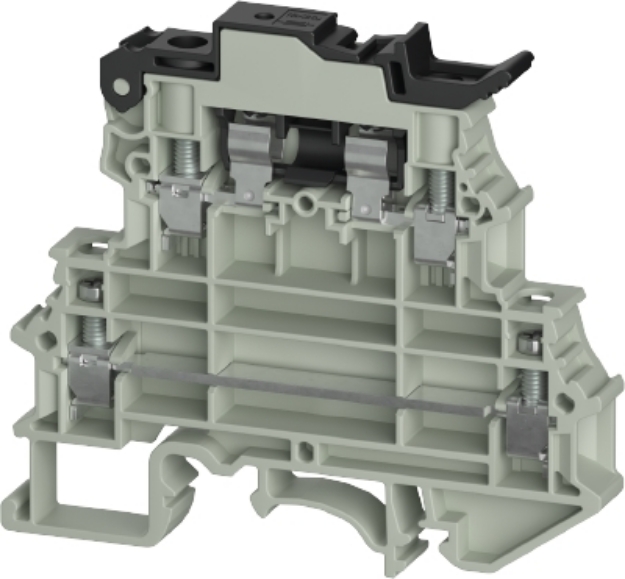

Screw Fuse Mounted Terminal WTN 4 FSI

Fuse Terminal WTN 4 E FSI 5X20

The WTN 4 E FSI 5X20 is a grey, two-level DIN rail fuse terminal with screw connections, a 4 mm² nominal cross section, 16 A rated current and 800 V rated voltage.

Technical Details

• Nominal cross section: 4 mm²
• Color: grey
• Number of levels: 2
• Number of clamp positions per level: 2
• Width/grid dimension: 8 mm
• Insulating housing: PA
• Inflammability class of insulation material according to UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: screw connection
• Halogen free: yes
• Rated current: 16 A
• Rated voltage: 800 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 72.5 mm
• Width: 8 mm
• Height: 63.9 mm
• Connection type 1: screw connection
• Minimum cross section solid: 0.14 mm²
• Maximum cross section solid: 6 mm²
• Minimum cross section fine stranded: 0.14 mm²
• Maximum cross section fine stranded: 4 mm²
• Minimum conductor cross section (flexible, stranded) with cable end sleeve: 0.5 mm²
• Maximum conductor cross section (flexible, stranded) with cable end sleeve: 2.5 mm²
• Wire strip length: 10 mm
• Torque conductor mounting: 0.5 Nm
• Cross section UL: 22-10 AWG
• Voltage UL: 300 V
• Current factory wiring: 16 A
• Current field wiring: 16 A
• Cross section CSA: 22-10 AWG
• Voltage CSA: 300 V
• Current CSA: 16 A

SKU WIE-5D.SE4.5055.0
MPN 5D.SE4.5055.0
EAN 4049088726934
