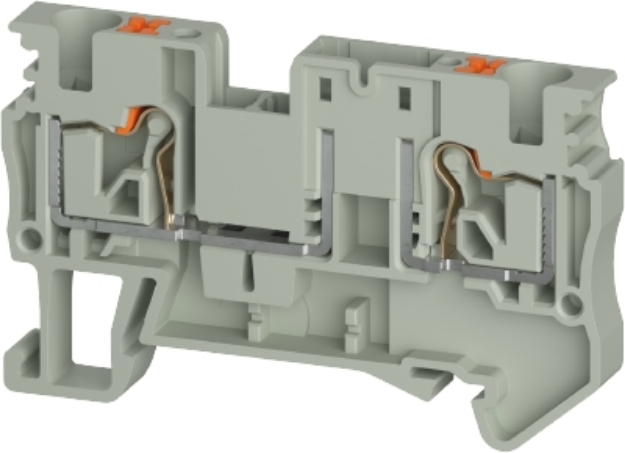

Push Fuse Terminal - 4mm - WTPN FSI

Fuse Terminal WTPN 4 FSI

The Fuse Terminal WTPN 4 FSI is a grey, single-level terminal block with push-in and plug-in connections for DIN rail mounting. It supports conductors from 0.2 mm² to 6 mm² and is rated for 10 A at 400 V.

Technical Details

• Nominal cross section: 4 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 6.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Connection type: push-In connection
• Halogen free: yes
• Rated current: 10 A
• Rated voltage: 400 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 57 mm
• Width: 6.1 mm
• Height: 36.5 mm
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.2 mm²
• Maximum cross section solid: 6 mm²
• Minimum cross section fine stranded: 0.2 mm²
• Maximum cross section fine stranded: 4 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 4 mm²
• Wire strip length: 12 mm
• Cross section UL: 24-10 AWG
• Voltage UL: 300 V
• Current factory wiring: 15 A
• Current field wiring: 15 A
• Cross section CSA: 24-10 AWG
• Voltage CSA: 300 V
• Current CSA: 15 A

SKU WIE-5D.204.4655.0
MPN 5D.204.4655.0
EAN 4049088719011
