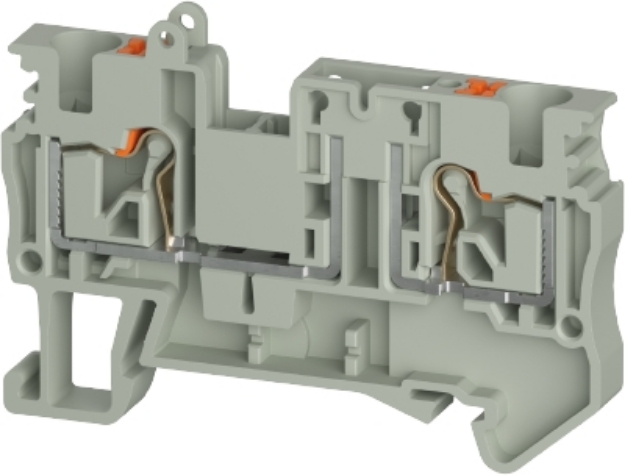

Push Disconnect Terminal - 4mm - WTPN

Cutting Clamp WTPN 4 TK

The Cutting Clamp WTPN 4 TK is a grey, pluggable, single-level terminal with a push-in connection and 4 mm² nominal cross section. It is rated for 500 V and 20 A and features a V0 thermoplastic insulating housing.

Technical Details

• Nominal cross section: 4 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 1
• Width/grid dimension: 6.1 mm
• Insulating housing: PA
• Inflammability class of insulation material according to UL94: V0
• Mounting method: pluggable
• Connection type: push-In connection//true
• Halogen free: yes
• Rated current: 20 A
• Rated voltage: 500 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 57 mm
• Width: 6.1 mm
• Height: 36.5 mm
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.2 mm²
• Maximum cross section solid: 6 mm²
• Minimum cross section fine stranded: 0.2 mm²
• Maximum cross section fine stranded: 4 mm²
• Minimum conductor cross section (flexible, stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flexible, stranded) with cable end sleeve: 4 mm²
• Wire strip length: 12 mm
• Cross section UL: 24-10 AWG
• Voltage UL: 300 V
• Current factory wiring: 20 A
• Current field wiring: 20 A
• Cross section CSA: 24-10 AWG
• Voltage CSA: 300 V
• Current CSA: 20 A

SKU WIE-5D.204.4155.0
MPN 5D.204.4155.0
EAN 4049088718960
