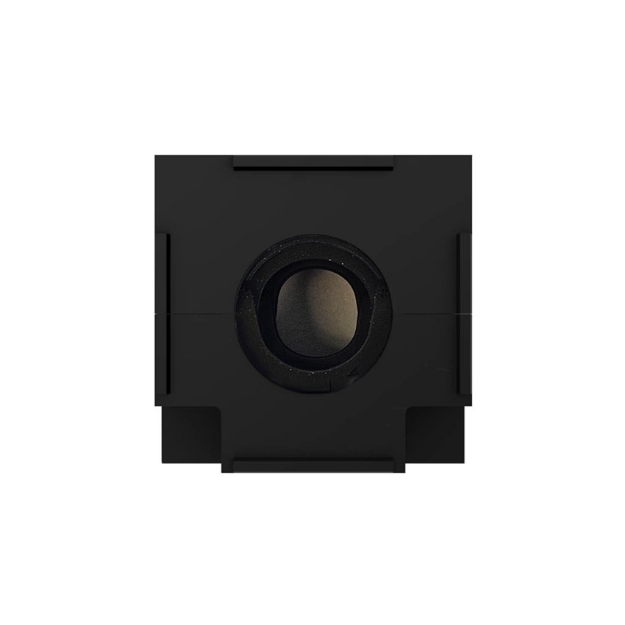

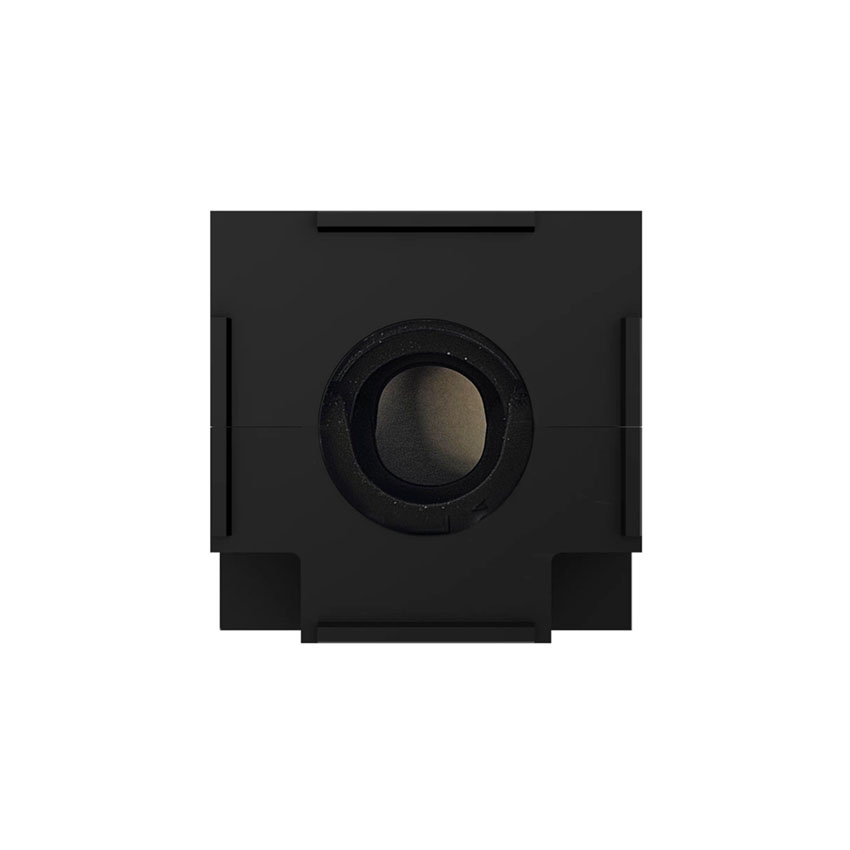

INSERT 40x40 Small

Large insert for 9-12mm cables

$28.00

(Each excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: LAPP-52220005 Manufacturer part number: 52220005 Price breaks available:

Free shipping on Web orders over $100

Application range

  • For installation of harnessed cables
  • Used in areas where cables and wires need to be safely inserted into housings
  • Apparatus and switch cabinet construction
  • Electronic installations
  • Automation technology

Benefits

  • Variable range of clamping force
  • Vibration-safe module fixation
  • Strain relief
  • Oil resistance
  • Simplified servicing due to easy assembling and disassembling

Product Make-up

  • The SKINTOP® CUBE system consists of the SKINTOP® CUBE FRAME and the clip modules SKINTOP® CUBE MODULE.
  • For cut-outs for industrial connectors with standard defined boreholes.
  • For cut-outs for 16-pin industrial connectors (36 x 86 mm)
  • For cut-outs for 24-pin industrial connectors (36 x 112 mm)

Norm references / Approvals

  • UL File Nr. E349737

Note

  • SKINTOP® CUBE MODULE 20x20 BLIND can be used as a blind module and for clamping ranges 1 - 3 mm

Included

  • SKINTOP® CUBE FRAME including mounting material

SKU
LAPP-52220005
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
