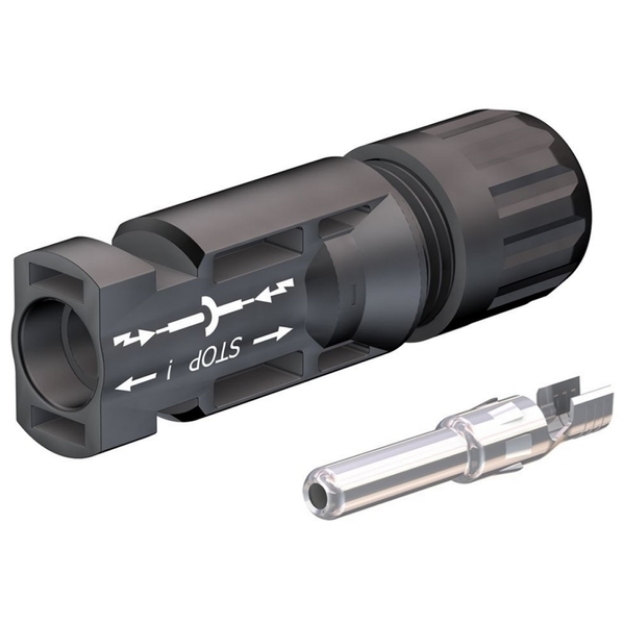

MC4 Original Plug 4/6mm

Stäubli MC4 Original Plug 1000V 4/6mm (5.5-7.4mm OD)

$5.87
(Each excl GST)
On Order
Select or Type Quantity
SKU: MC-32.0143P0001-UR Manufacturer part number: 32.0143P0001-UR Manufacturer: Stäubli

Free shipping on Web orders over $100

The Stäubli 32.0143P0001-UR is a high-stability MC4 male cable connector designed for photovoltaic systems. It supports voltages up to 1000V/1500V DC and features proven MULTILAM technology, ensuring consistently low performance loss.

Technical data

  • Ambient temperature range -40 °C...+85 °C (TÜV/UL)
  • Upper limiting temperature 105 °C
  • Degree of protection, mated IP65/IP68 (1 m, 1 h)
  • Degree of protection, unmated IP2X
  • Degree of pollution 3
  • Max. contact resistance of the connector 0.25 mΩ
  • Rated Impulse Voltage 16 kV
  • Contact system MULTILAM
  • Type of connection Crimping
  • Contact material Copper, tin plated
  • Insulation material PC/PA
  • Locking system Locking Type
  • Fire protection class UL94:V-0
  • Ammonia resistance Acc. to DLG
  • Ammonia resistance tested in accordance with 2 PfG 1911/04.16
  • Salt mist spray test Degree of severity 6
  • Max. number of mating cycles 100
  • TÜV Rheinland certifications number R 60127190
  • TÜV Rheinland 2 PfG 2330 R 60087448
  • UL-File number (UL6703 and CSA C22.2 No. 182.5) (cULus Listed and UL Recognized) E343181
  • CQC number of certificate CQC20024256431
  • JET number of certificate B19T0013



SKU MC-32.0143P0001-UR
MPN 32.0143P0001-UR

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Voltage 1500Vdc
Conductor Size 6mm
Gender Male
Product Files
*
*
*
