+180°C Silicon Cable 3G0.75

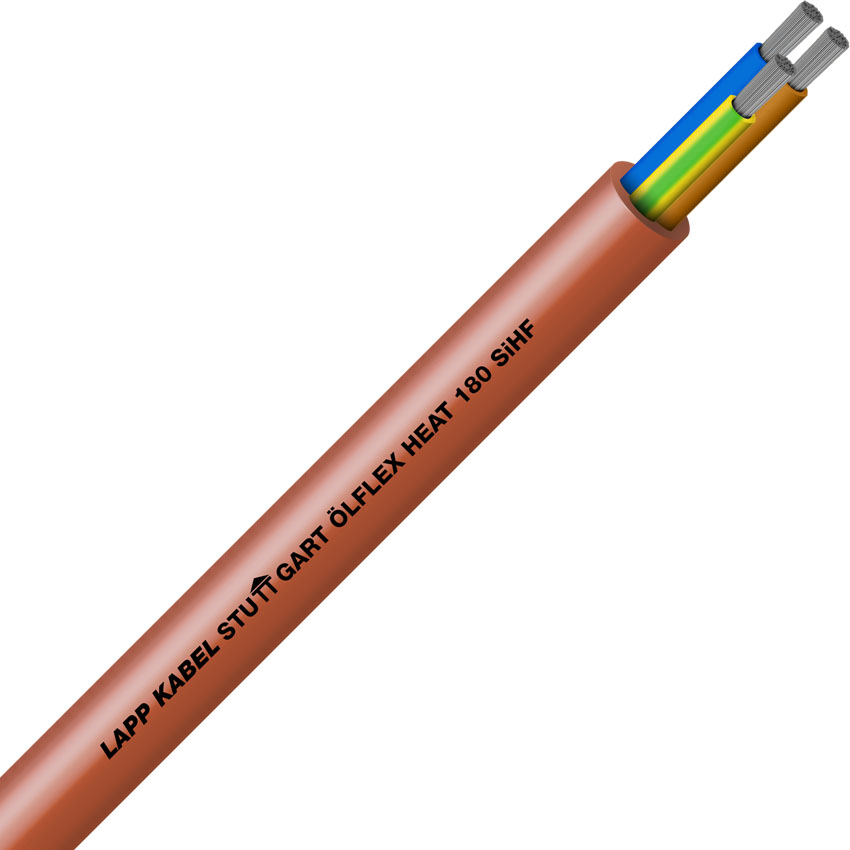

ÖLFLEX® HEAT 180 SiHF 3G0.75 (2 + E) suitable up to 180 degrees

Free shipping on Web orders over $100

$6.49
(Per/m excl GST)
Global Stock
SKU: LAPP-0046002 Manufacturer part number: 0046002

ÖLFLEX® HEAT 180 is a control cable made with Silicon insulation and sheath compounds. This makes it suitable for much higher ambient temperatures. However, because it is made of Silicon the sheath is softer and easier to damage compared to a traditional PVC cable.

Colour Coding
• 3 Core - Brown, Blue, Green/Yellow
• 4 Core - Brown, Black, Grey, Green/Yellow
• 5 Core - Brown, Black, Grey, Blue, Green/Yellow
• 7 Core – 6 Numbered + Green/Yellow


Features
• Higher Temperature Rating
• Tinned Conductors
• Halogen Free


Voltage Rating
• 300/500V


Bending Radius
• Fixed: 4 x Cable OD


Temperature Rating
• -50 to 180


SKU
LAPP-46002

SKU
LAPP-0046002

SKU
LAPP-0046002
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Number of Conductors 3
Conductor Size 0.75mm
Colour Red / Brown Stripe
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

ÖLFLEX® HEAT 180 is a control cable made with Silicon insulation and sheath compounds. This makes it suitable for much higher ambient temperatures. However, because it is made of Silicon the sheath is softer and easier to damage compared to a traditional PVC cable.

Colour Coding
• 3 Core - Brown, Blue, Green/Yellow
• 4 Core - Brown, Black, Grey, Green/Yellow
• 5 Core - Brown, Black, Grey, Blue, Green/Yellow
• 7 Core – 6 Numbered + Green/Yellow


Features
• Higher Temperature Rating
• Tinned Conductors
• Halogen Free


Voltage Rating
• 300/500V


Bending Radius
• Fixed: 4 x Cable OD


Temperature Rating
• -50 to 180


SKU
LAPP-46002

SKU
LAPP-0046002

SKU
LAPP-0046002
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Number of Conductors 3
Conductor Size 0.75mm
Colour Red / Brown Stripe
