Reeling PUR 5G16

Benefits

• Designed with a smaller outer diameter to save space and weight
• Cost-saving due to the use of smaller drums, guide rollers, as well as drive engines when possible
• Reeling, unreeling and guiding operations also impose tensile stresses on the cables
• The central supporting element absorbs the tensile loads that occur, thereby allowing reeling, unreeling and deflection for free-hanging cables even over large distances.
• Integrated supporting braid prevents undesirable cable twists, and the formation of so-called corkscrew effects

Application range

• For use in hoists, transport and conveyor
  systems
• Cables are reeled, unreeled, and guided by roller trains
• In dry or damp interiors, outdoors, or not more than 2 weeks without interruption in industrial water
• The application profiles for ÖLFLEX^® CRANE and ÖLFLEX^® LIFT cables can be found in the appendix, selection table A3
• The assembly and handling guidelines for ÖLFLEX^® CRANE cables can be found in the catalogue appendix, technical table T4; for ÖLFLEX^® LIFT cables please see the catalogue appendix, technical table T5

Product features

• Halogen-free and flame-retardant
  (IEC 60332-1-2)
• Oil-resistant according to EN 60811-404
• Good chemical, thermal and mechanical-resistance

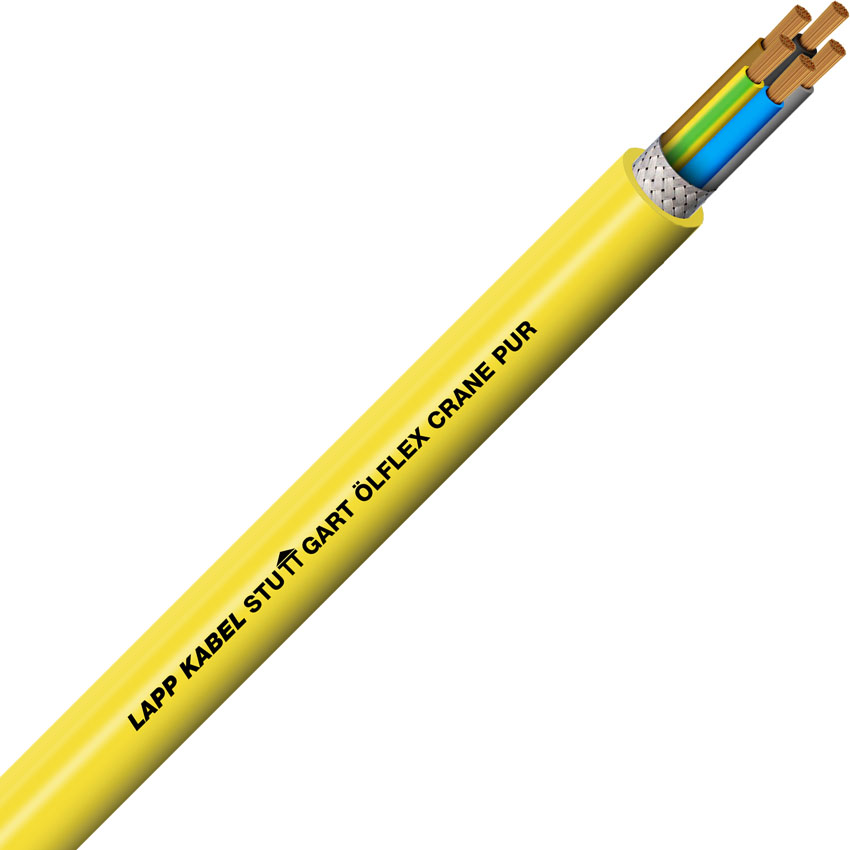

Product Make-up

• Conductor made of bare copper wires
• Core insulation: TPE compound
• Central supporting element
• Support braid integrated in the outer sheath
• Outer sheath: PUR compound, halogen-free
