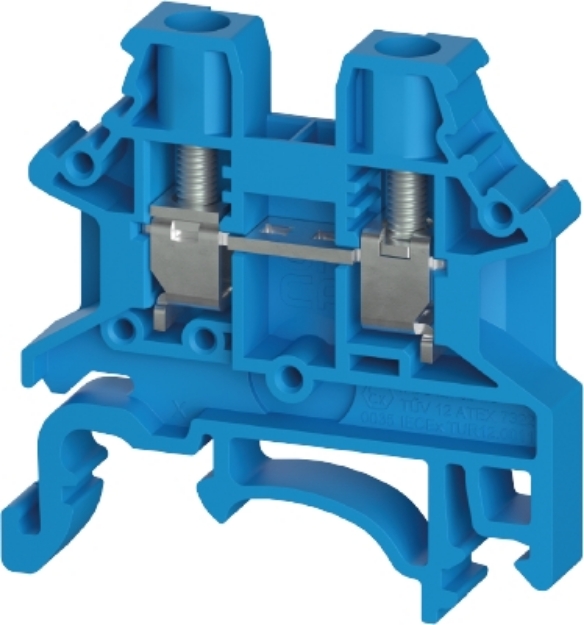

Screw Terminal - 4mm -WTN - Grey

Feed-Through Terminal WTN 4 BL

Technical Details

• Nominal cross section: 4 mm²
• Color: blue
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 6.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Connection type: screw connection
• Halogen free: yes
• Rated current: 32 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 40.7 mm
• Width: 6.1 mm
• Height: 40.9 mm
• Connection type 1: screw connection
• Connection type 2: screw connection
• Minimum cross section solid: 0.34 mm²
• Maximum cross section solid: 6 mm²
• Minimum cross section fine stranded: 0.34 mm²
• Maximum cross section fine stranded: 4 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.34 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 2.5 mm²
• Wire strip length: 10 mm
• Torque conductor mounting: 0.5 Nm
• Cross section UL: 22-10 AWG
• Voltage UL: 600 V
• Current factory wiring: 30 A
• Current field wiring: 30 A
• Cross section CSA: 22-10 AWG
• Voltage CSA: 600 V
• Current CSA: 30 A

SKU WIE-5D.S04.0055.6
MPN 5D.S04.0055.6
EAN 4049088724930
