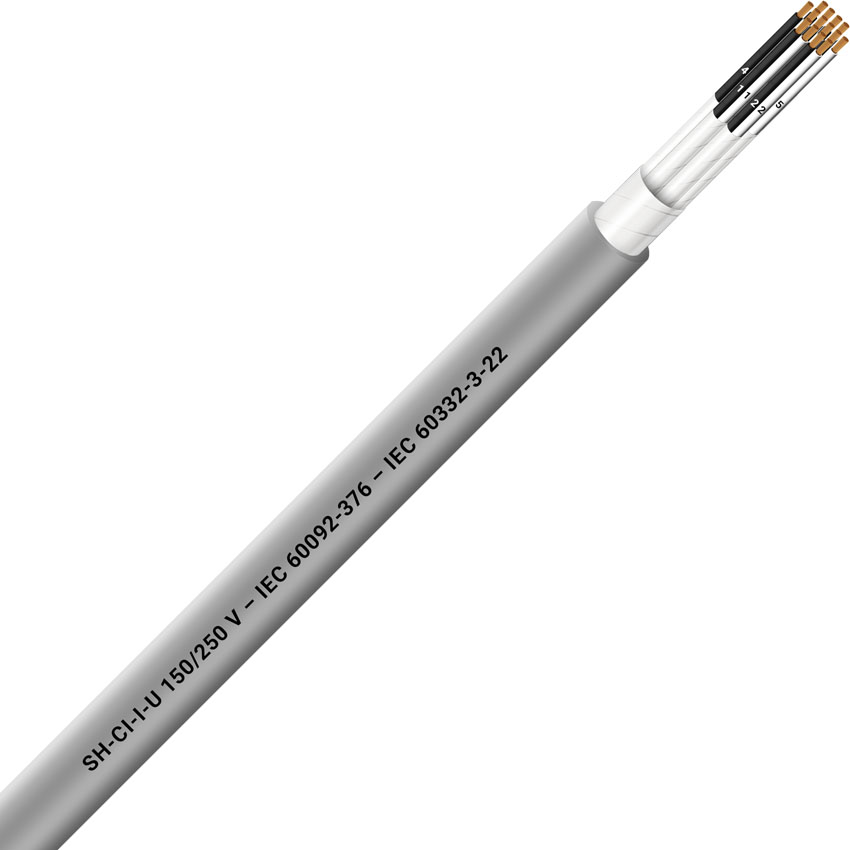

Unarmoured Individually Screened 7x2x0.50 Grey

SH-CI-I-U

Control and instrumentation, individually screened, unarmoured shipboard cables rated 150/250V (300V)

SH-CI-I-U cables are designed for control and instrumentation applications on ships. They are individually screened to minimize interference and are unarmoured. These cables are rated for 150/250V (300V) and are suitable for fixed installation.

Technical Data

• Conductor: Bare (optional tinned copper) class 5 according to IEC 60228
• Insulation: HF XLPE compound according to IEC 60092-360. Thickness according to IEC 60092-376
• Core Identification: Pair: black, white with numbers 1-1, 2-2, 3-3, …
  Triple: black, white, red with numbers 1-1-1, 2-2-2, 3-3-3, …
  Quad: black, white, red, blue with numbers 1-1-1-1, 2-2-2-2, 3-3-3-3, …
• Single Core Assembly: Each core assembled forming pairs or triples or quads (unit)
• Individual Screen: Aluminium/polyester tape with drain wire (optional bare or tinned copper wire braid)
• Unit Assembly: All units assembled in round formation with suitable fillers and non-hygroscopic tape(s)
• Outer Sheath: Compound SHF1 in accordance with IEC 60092-360. Thickness in accordance with IEC 60092-376. Colour: grey (or other colour agreed). Outer diameter in accordance with IEC 60092-350 annex D
• Marking: UNIKA (Italy) – SH-CI-I-U 150/250 V 90°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – traceability code
• Rated Conductor Temperature for Fixed Installation: 90°C
• Minimum Installation Temperature: -15°C
• Minimum Bending Radius: 6D: D is the overall diameter
• Fire Behaviour: IEC 60332-3-22 not fire propagation
  IEC 60332-1-2 not flame propagation
  IEC 60754-1 halogen content
  IEC 60754-2 pH and conductivity
  IEC 60684-2 fluorine content
  IEC 61034 smoke emission

SKU LAPP-NA102
MPN NA102
