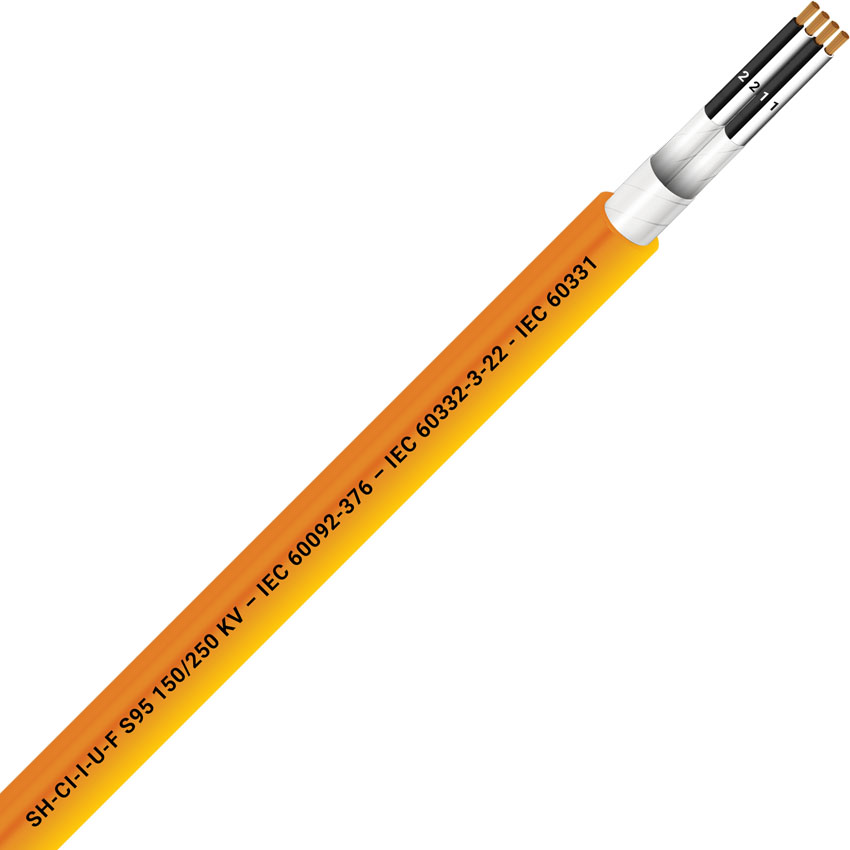

Unarmoured Individually & Overall Screened 2x2x0.50 Orange

SH-CI-I-U-F S95

Control and instrumentation, individually screened, unarmoured, fire resisting shipboard cables rated 150V/250V

SH-CI-I-U-F S95 cables are designed for control and instrumentation applications in shipboard environments. They feature individual screening for each core/unit to minimize interference, are unarmoured for flexibility, and provide excellent fire resistance. These cables are rated for 150V/250V.

Technical Data

• Conductor: Bare (optional tinned copper) class 5 according to IEC 60228
• Insulation: Silicon compound S95 according to IEC 60092-360. Thickness according to IEC 60092-376
• Core Identification (Preferential): Pairs: black, white with numbers 1-1, 2-2, 3-3, … Triples: black, white, red with numbers 1-1-1, 2-2-2, 3-3-3, … Quads: black, white, red, blue with numbers 1-1-1-1, 2-2-2-2, 3-3-3-3, …
• Single Core Assembly: Each core assembled forming pairs or triples or quads (unit)
• Individual Screen: Aluminium/polyester tape with drain wire (optional bare or tinned copper wire braid) on each unit
• Unit Assembly: All cores or units assembled in round formation with suitable fillers and non hygroscopic tape(s)
• Outer Sheath: SHF1 compound according to IEC 60092-360. Thickness according to IEC 60092-376. Colour: orange (or other colour agreed). Outer diameter according to IEC 60092- 350 annex D
• Marking (Cable diameter > 20mm): UNIKA (Italy) – SH-CI-I-U-F S95 150/250 V 95°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-1 – traceability code
• Marking (Cable diameter ≤ 20mm): UNIKA (Italy) – SH-CI-I-U-F S95 150/250 V 95°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-2 – traceability code
• Rated Conductor Temperature (Fixed Installation): 90°C
• Minimum Installation Temperature: -15 °C
• Minimum Bending Radius: 6D: D is the overall diameter
• Fire Behaviour:
  • IEC 60332-3-22 not fire propagation
  • IEC 60332-1-2 not flame propagation
  • IEC 60331-21, IEC 60331-1 (2) fire resistant
  • IEC 60754-1 halogen content
  • IEC 60754-2 pH and conductivity
  • IEC 60684-2 fluorine content
  • IEC 61034 smoke emission

SKU LAPP-NC2C4S
MPN NC2C4S
