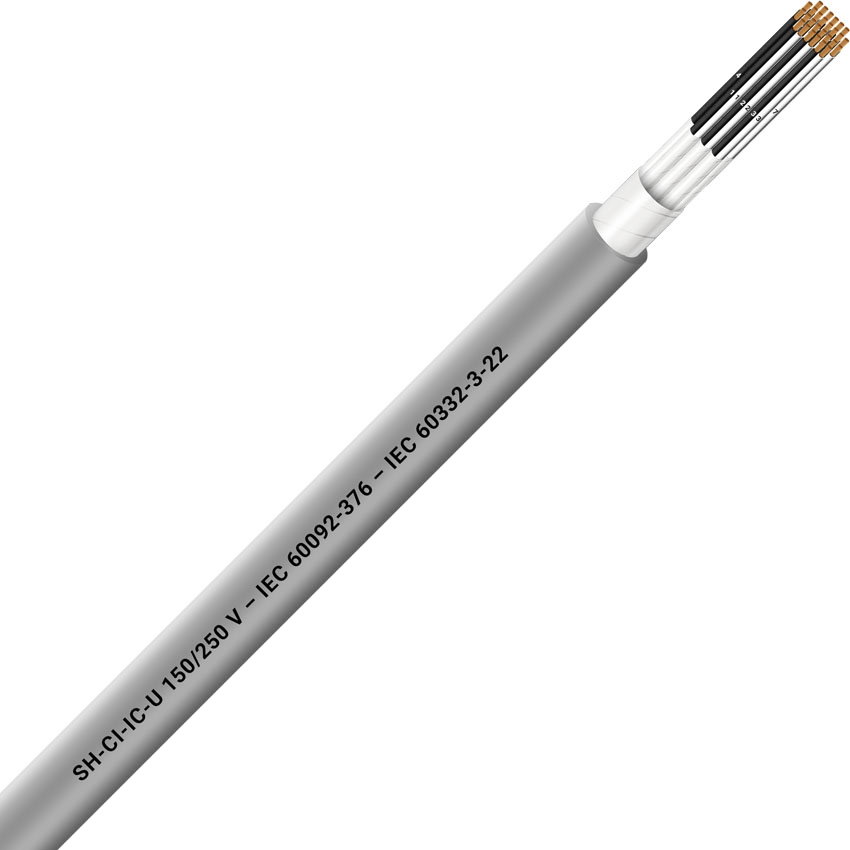

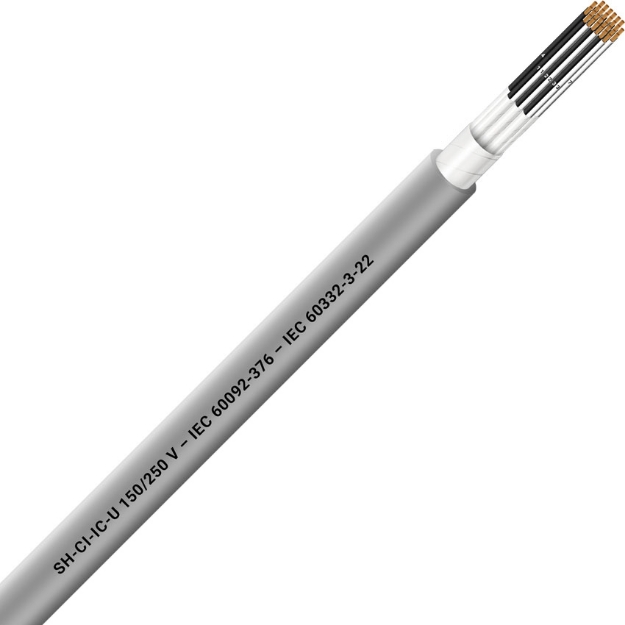

Unarmoured Individually & Overall Screened 14x2x0.75 Grey

SH-CI-IC-U

Control and instrumentation, individually and collectively screened, unarmoured shipboard cables rated 150/250V (300V)

The SH-CI-IC-U cable is designed for control and instrumentation applications in marine environments. It features individual and collective screening to minimize interference and ensure signal integrity. The unarmoured construction makes it suitable for installations where mechanical protection is not a primary concern. It complies with relevant IEC standards for safety and performance.

Technical Data

• Rated Voltage: 150/250V (300V)
• Conductor:
  • Material: Bare (optional tinned) copper
  • Class: Class 5 according to IEC 60228
• Insulation:
  • Material: HF XLPE compound according to IEC 60092-360
  • Thickness: According to IEC 60092-376
• Core Identification:
  • Pair: Black, white with numbers 1-1, 2-2, 3-3, …
  • Triple: Black, white, red with numbers 1-1-1, 2-2-2, 3-3-3, …
  • Quad: Black, white, red, blue with numbers 1-1-1-1, 2-2-2-2, 3-3-3-3, …
• Single Core Assembly: Cores assembled to form pairs, triples, or quads (unit)
• Individual Screen:
  • Material: Aluminium/polyester tape + drain wire (optional bare or tinned copper wire braid)
• Unit Assembly: Cores or units assembled in round formation with suitable fillers and non-hygroscopic tape(s)
• Collective Screen:
  • Material: Aluminium/polyester tape + drain wire
• Outer Sheath:
  • Material: Compound SHF1 according to IEC 60092-360
  • Thickness: According to IEC 60092-376
  • Colour: Grey (or other colour agreed)
  • Outer Diameter: According to IEC 60092-350 annex D
• Marking:
  • Marking Example: UNIKA (Italy) – SH-CI-IC-U 150/250 V 90°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – traceability code
• Rated Conductor Temperature (Fixed Installation): 90°C
• Minimum Installation Temperature: -15°C
• Minimum Bending Radius: 6D (D is the overall diameter of the cable)
• Fire Behaviour:
  • IEC 60332-3-22: Not fire propagation
  • IEC 60332-1-2: Not flame propagation
  • IEC 60754-1: Halogen content
  • IEC 60754-2: pH and conductivity
  • IEC 60684-2: Fluorine content
  • IEC 61034: Smoke emission

SKU LAPP-NEW04
MPN NEW04
