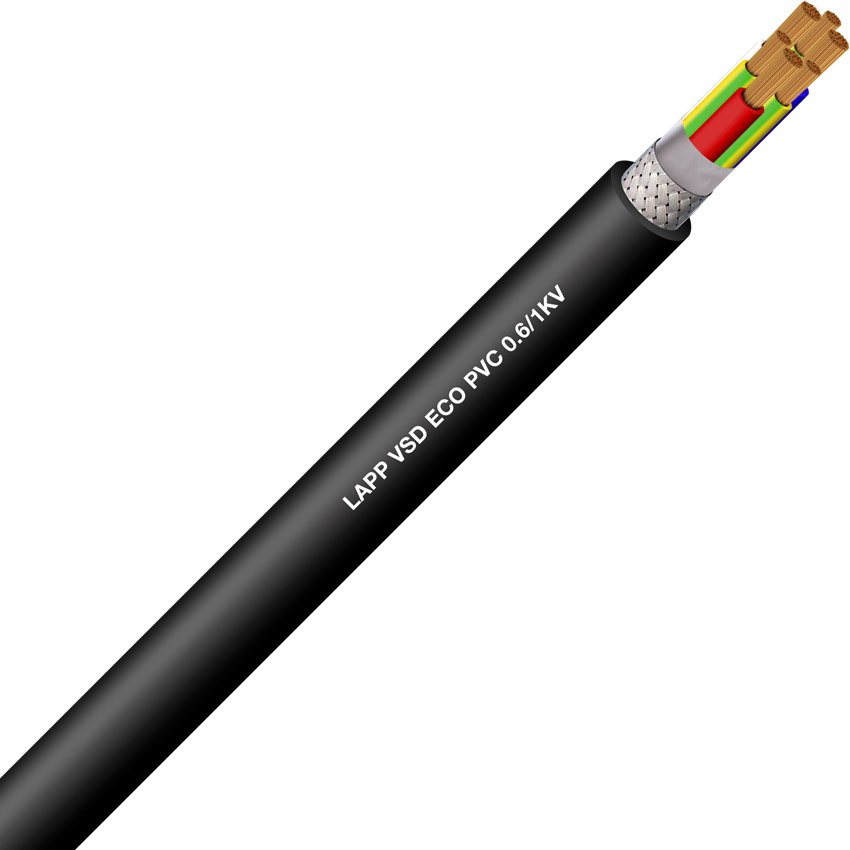

VSD ECO 3X16 (3 + E)

VSD Cu/PVC/SCN/PVC 0.6/1kV cable. Designed as a variable speed drive (VSD) cable with copper conductor, PVC insulation, screened construction and PVC outer sheath. Available in multiple core configurations including 4-core and 3+3 core designs.

Benefits

• Flexible bare copper conductor (IEC 60228 Class 5) for improved handling and installation
• V-90 PVC insulation compliant with AS/NZS 3808 for reliable thermal performance
• Dual screening with aluminium foil and tinned copper braid for enhanced electromagnetic interference reduction
• UV-resistant 5V-90-UV outer sheath suitable for outdoor exposure
• Flame retardant according to IEC 60332-1-2 for improved fire safety
• Suitable for both fixed installation and occasional flexing
• Wide range of conductor sizes from 1.5 mm² up to 300 mm² to suit different load requirements

Technical Details

• Rated Voltage: 600/1000V
• Test Voltage: AC 3500V for 5 minutes
• Temperature Range: -15°C to +90°C
• Minimum Insulation Resistance: 10MΩ·km at 20°C
• Minimum Bending Radius: 15 x cable diameter for occasional flexing
• Minimum Bending Radius: 4 x cable diameter for fixed installation
• Conductor: Bare copper wire according to IEC 60228 Class 5
• Insulation: V-90 PVC according to AS/NZS 3808
• Core Colours: 4 core RD/WH/BU/GNYE, 3+3 core RD/WH/BU plus 3 GNYE
• Laying Up: 4-core twisted in one layer, 3+3 core concentrically twisted with protective conductor divided into three
• Screen: Aluminium foil with minimum 25% overlap and tinned copper braid with minimum 80% coverage
• Outer Sheath: 5V-90-UV PVC compound according to AS/NZS 3808

SKU LAPP-810004006
MPN 810004006
