Cable entry frames KEL-BES for routing cables into network cabinets, control boxes and control cabinets.
The KEL-BES Brush Frame is a brand new release from Icotek. Most cabinets don't require an IP68 waterproof rating. The new Icotek brush frame can be the perfect option allowing for quick running of cables and connectors while keeping dust out. KEL-BES is also an ideal solution for entry and exit of cables that are routed inside raised floors, e.g. in computer centres.

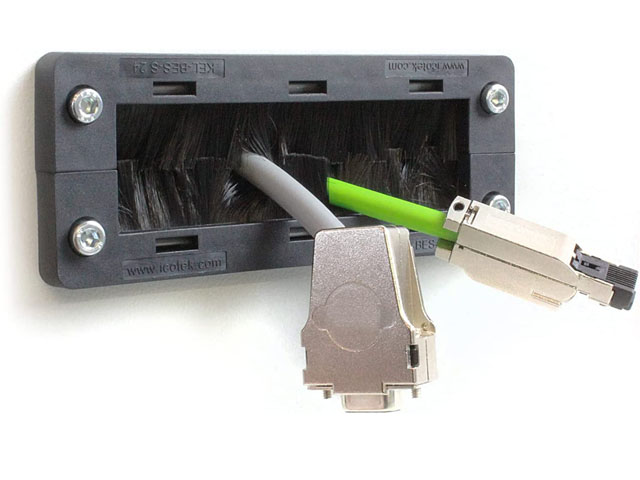

KEL-BES-S split brush plate for cable pass-through
Split brush plates KEL-BES-S for routing cables into server racks, control panels and electrical enclosures. KEL-BES-S is also an ideal solution for entry and exit of cables that are routed inside raised floors, e.g. in computer centres. The brush plates can either be mounted via screws or via expanding rivets. Due to the split frame the KEL-BES-S can also be subsequently installed around the routed cables. The KEL-BES-S frames match exactly the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors.
Brush Entry System - For Dust
Advantages & benefits
- Fast and easy assembly
- Subsequent assembly possible
- Versatile utilisation
- Allows reduced airflow while filtering out dust, hair and larger particulate matter
- Visual screening
- Protects cables against wear due to sharp edges of the cut-out
