Hygienic design cable entry plates with a very smooth surface.
FDA compliant, sealing with up to IP66 / IP68
The KEL-DPZ-HD hygienic cable entry plates, available with metric threads from M32 to M63, are designed for installation in food processing and packaging machinery. The KEL-DPU-HD is distinguished by its robust, solid frame and enhanced strain relief for routed cables. The KEL-DPU-HD 24 precisely matches the cut-out dimensions of 24-pin standard industrial connectors.
Developed in accordance with Hygienic Design guidelines, the cable entry plates have surfaces free of dirt-collecting recesses and are exceptionally smooth. The surface roughness, measured according to ISO 4287, is only Ra = 0.421 μm (arithmetic mean). The outer contour features a radius of 6 mm, exceeding the minimum requirement of 3 mm.
Hygienic cable entry plates use an FDA-compliant elastomer in line with food approvals 1935/2004/EC and (EU) 10/2011, and are detergent-resistant, with certification from ECOLAB. They are designed to route multiple cables and hoses with diameters ranging from 3.2 mm to 22.2 mm, providing sealing in accordance with IP65/66/67/68 standards. Hygienic ST-B-HD plugs (also available as detectable ST-B-HDD versions) can be used to seal pierced membranes when cables are removed.
Compared with hygienic stainless steel cable glands, these plates offer significant advantages, including higher cable density, greater flexibility in cable diameter range, and notable cost savings.
Well tested & certified
Membrane-based hygienic cable entry plates allow unterminated cables or pneumatic hoses to be routed quickly and efficiently into control cabinets, panels, and machines, providing sealing with certified protection classes up to IP66/IP68 (according to EN 60529). With approvals and standards including IP certifications, Hygienic Design, FDA-compliant materials (1935/2004/EC and EU 10/2011), and ECOLAB-certified detergent resistance, hygienic icotek cable entry plates offer a cost, space and time saving alternative to hygienic stainless steel cable glands.
Certificates or declarations of conformity can be requested directly from us.
Cable entry systems for the food industry - Available From ECS

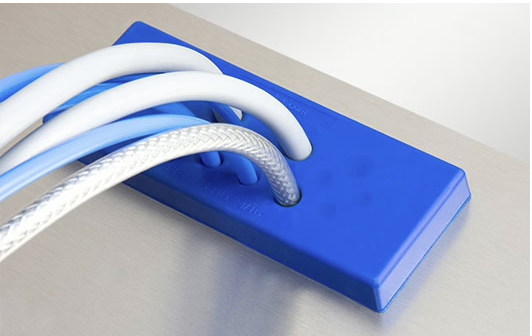

Heavy Duty Gland plates
Hygienic heavy duty gland plate w/ high strain relief and certified protection up to IP66/IP68.

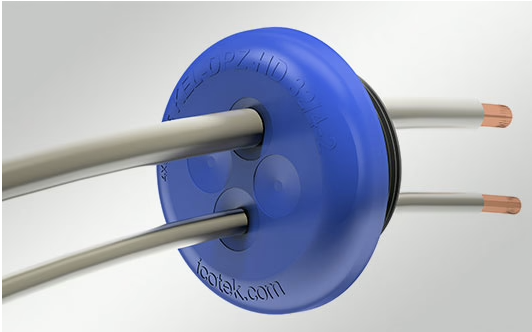

Round Gland Plate
Round hygienic gland plate w/ certified sealing IP66/IP68. Metric threads M25-M63.

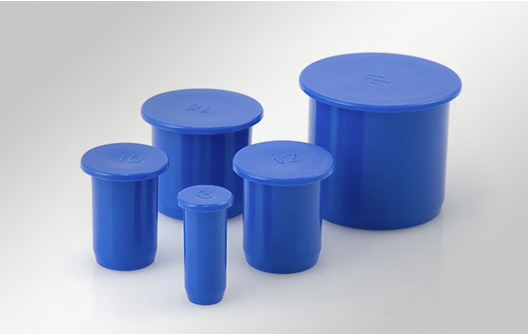

Membrane-plugs
Hygienic heavy duty gland plate w/ high strain relief and certified protection up to IP66/IP68.
