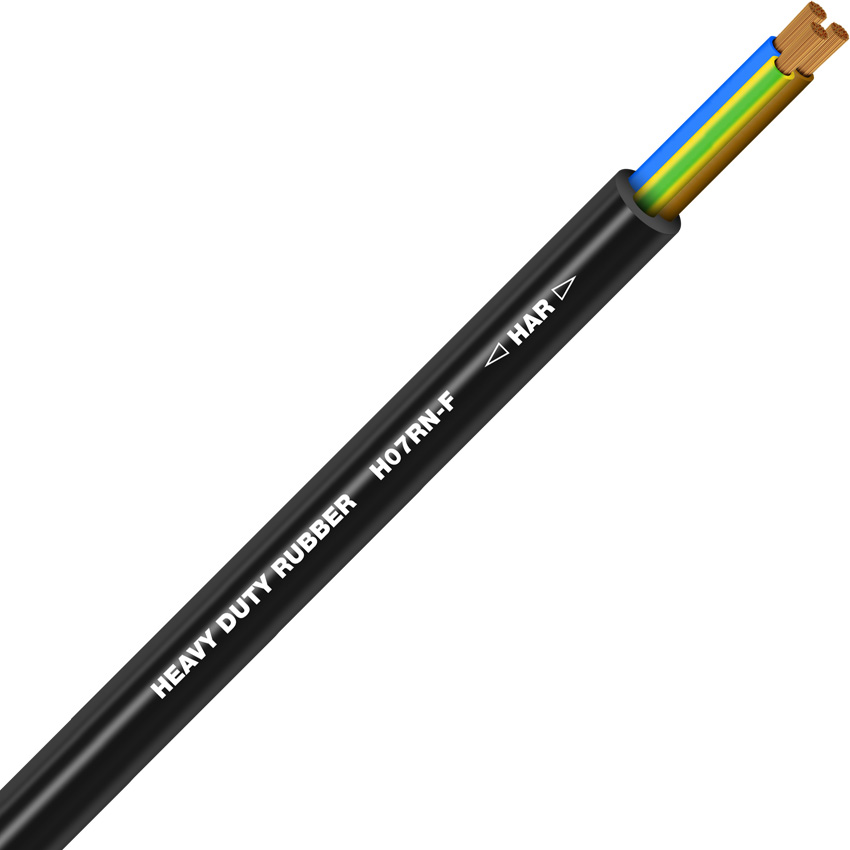

Black Rubber Flex 3G2.5

Heavy Duty Rubber Cable

The H07RN-F is a robust and flexible power and control cable designed for demanding industrial and agricultural applications. Its heavy-duty rubber construction provides excellent resistance to oils, abrasion, and weathering, making it suitable for use in harsh environments. It is flame-retardant and can be used in dry, damp, and wet locations, both for fixed installations and mobile equipment.

The H07RN-F cable is a versatile and reliable solution for power and control applications where mechanical stress and environmental factors are a concern. It's designed for medium mechanical stress and offers oil resistance, ensuring a long lifespan in demanding conditions. This cable is suitable for handheld devices, power supplies, and fixed installations. It meets relevant European standards and is HAR approved, guaranteeing its quality and performance.

Technical Data

• Heavy-duty standard construction Built to withstand demanding conditions.
• HAR Approved Complies with harmonized European standards.
• Application Industrial and agricultural use
• Voltage Rating 450/750 V
• Conductor Class Class 5 (Flexible)
• Temperature Range -25°C to +60°C
• Oil Resistance According to EN 60811-404
• Flame Retardancy According to IEC 60332-1-2
• Mechanical Stress Suitable for medium mechanical stress
• Voltage (Protected) 1000 V AC at protected + static laying
• Installation Suitable for short circuit-proof and short-to-ground-proof installations according to IEC 60364-5-52/ HD 60364-5-52/ VDE 0100 Part 520
• Application Range Handheld and power supply devices according to EN 50565-2. Dry, damp and wet rooms. Fixed installation e.g. on plaster.
• Norm References / Approvals H07RN-F cable type approval according to EN 50525-2-21
• Conductor Material Bare copper wire according to HAR
• Core Insulation Rubber compound, type EI 4
• Outer Sheath Rubber compound, type EM2
• ETIM 5 Classification Flexible cable (EC001578)
• ETIM 6 Classification Flexible cable (EC001578)
• Core Identification Code Up to 5 cores: colour-coded according to VDE 0293-308. From 6 cores: black with white numbers
• Conductor Stranding Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
• Minimum Bending Radius 4 to 8 x outer diameter (EN 50565-1)
• Nominal Voltage U0/U: 450/750 V
• Test Voltage 2500 V
• Protective Conductor G = with GN-YE protective conductor; X = without protective conductor
• Current Rating According to IEC 60364-5-52/ VDE 0298-4 EN 50565-1/ VDE 0298-565-1
• Fixed Installation Temperature Range -25°C up to +60°C
• Occasionally Moved Temperature Range -25°C up to +60°C

SKU LAPP-393807142
MPN 393807142
