Solar Earth Cable 1x6mm

Name: Solar Earth Cable 1x6mm
SKU: LAPP-0025823S
Price: 7.00 NZD
Availability: InStock

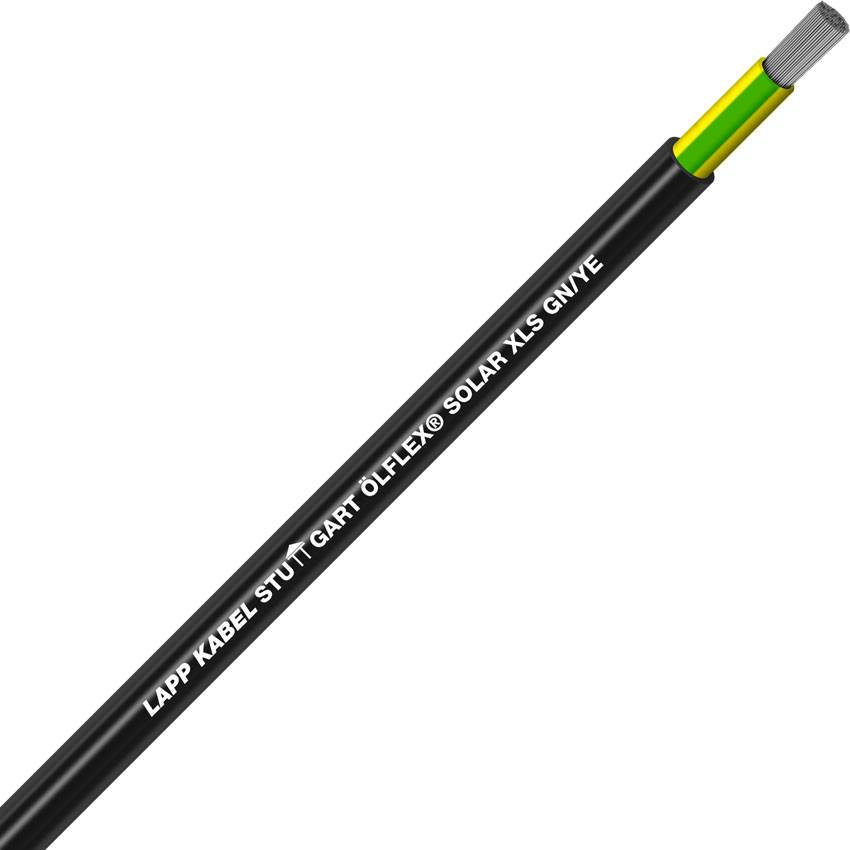

ÖLFLEX® Solar XLS Earth Cable 1x6mm GNYE/BK

$7.00 (Per/m excl GST)

(Per/m excl GST)

In Stock

SKU: LAPP-0025823S Manufacturer part number: 0025823S Manufacturer: ÖLFLEX® Price breaks available:

Select or Type Quantity

SKU: LAPP-0025823S Manufacturer part number: 0025823S Manufacturer: ÖLFLEX® Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

The only truly UV Resistant Earth Cable on the market.

This Solar Earth Cable is a variation on LAPP's standard Solar Cable range. LAPP use a traditional fine stranded earth cable and then extrude a special black UV resistant sheath over top.

Nominal voltage

DC U₀/U : 900/1500 V
Max. permissible operating voltage:
DC 1,8 kV (Conductor-conductor, non earthed system)

Temperature range
-40°C to +120°C max. conductor temperature based on EN 60216-1

Minimum bending radius
Fixed installation: 4 x outer diameter

Conductor stranding
Fine wire according to VDE 0295, class 5/IEC 60228 class 5

Test voltage
AC 6500 V

SKU: LAPP-0025823s
MPN: 25823s

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Locally Stocked in Australia	Only Show Stocked Items
Locally Stocked in NZ	Only Show Stocked Items
Colour	Earth (Green / Yellow)
Conductor Size	6mm
Number of Conductors	1

Product Files

Type Name

CurrentRating_PV_Cables

Current Chart

Datasheet

LAPP Solar Cable - ECS Datasheet
