MC4-Evo 2 Female Socket (4-6mm)

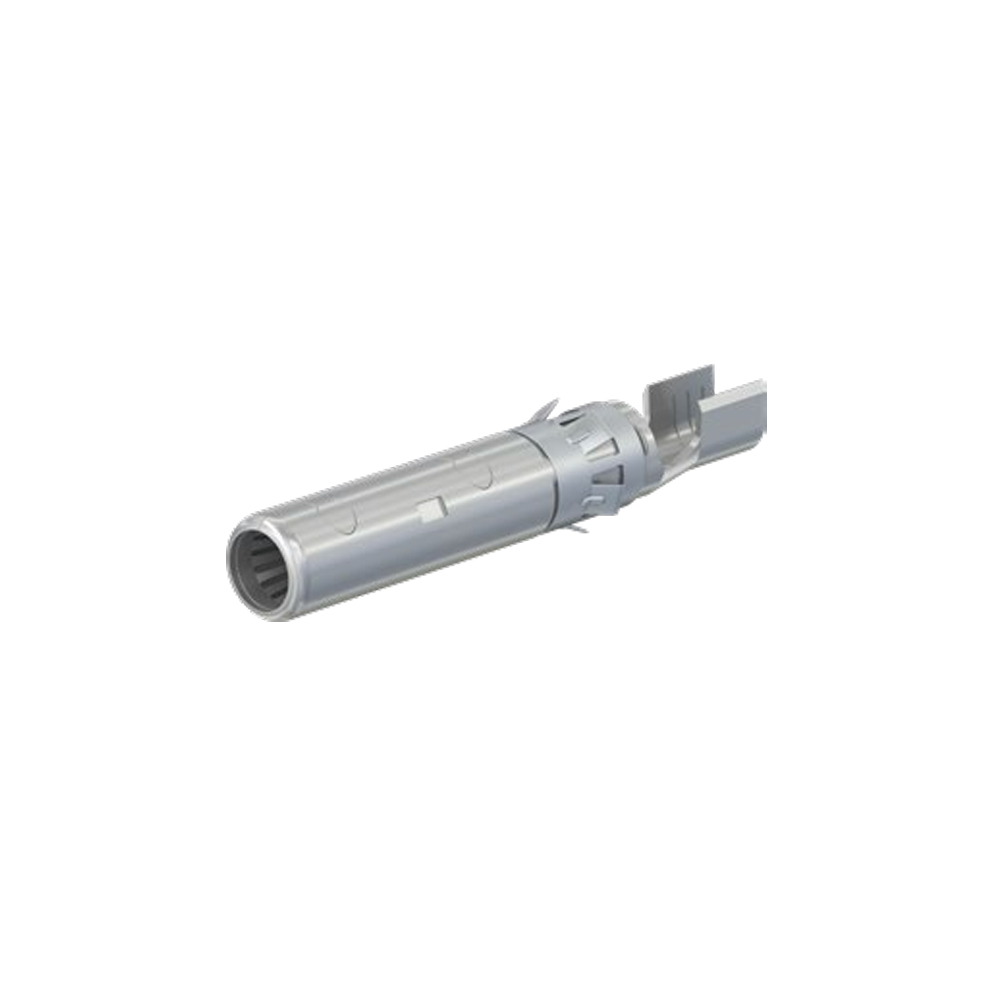

Stäubli MC4-Evo 2 Female Socket Pin to suit 4-6mm² cable 1500V

Mitigate power loss, downtimes, service hours, risk of fire of your PV-System by using MC4-Evo 2 connectors. The unique contact technology will guarantee an excellent long-term reliability and a low contact resistance over the entire product life.

Specifications

• Wire size 12AWG...10AWG
• Wire cross-section 4...6mm
• Protection Rating IP67
• DC 1500V
• Max Amperage 47A
• Operating temperature -40 - 85°C
• Rated surge voltage 16kV
• MC4 EVO-2 (Multi Contact)

New Zealand Regulations

Please note is it not allowed to plug different brands of connectors together (even if they seem to fit OK). These are original MC4 (Multi Contact 4 connectors). If you do not know what the other connector is, you will need to cut it off, and attach a new MC4 connector.

SKU MC-32.0121P0001
MPN 32.0121P0001
EAN 2000100940938
