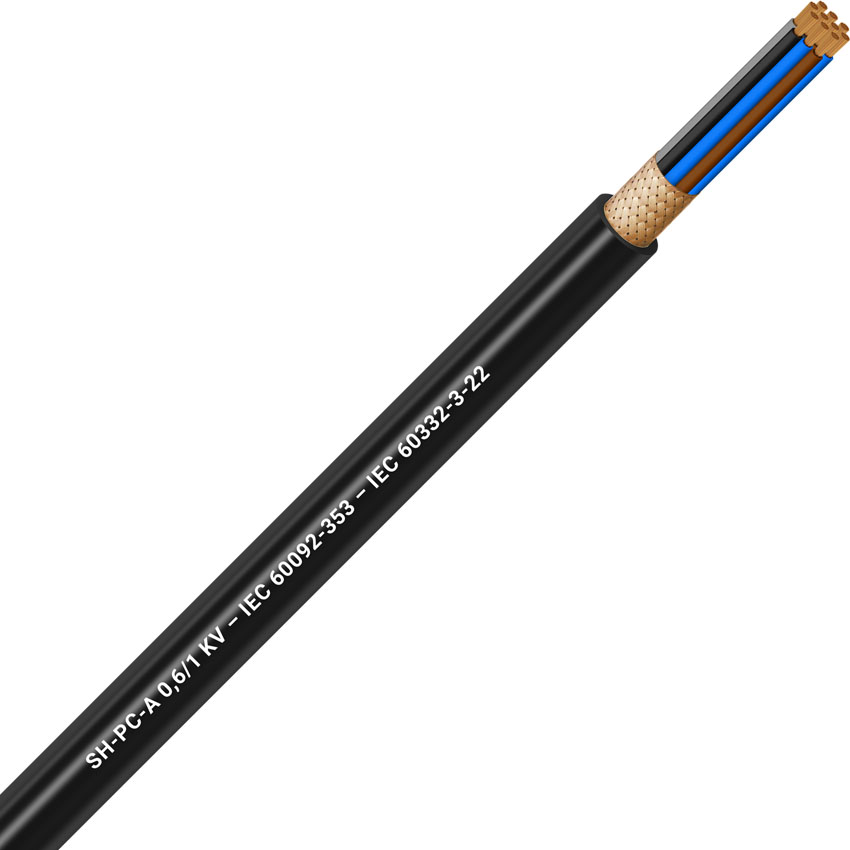

Armoured Multicore 19x2.5 Black

SH-PC-A

Shielded power and control cable for fixed installation, designed for marine applications. Halogen-free construction ensures safety in enclosed environments. Compliant with IEC standards for marine cables.

The SH-PC-A cable is a 0.6/1 kV shielded cable specifically designed for marine and offshore applications. Its halogen-free construction ensures low smoke and corrosive gas emission in case of fire, enhancing safety. The cable features a copper conductor, HF XLPE insulation, copper wire braid armour, and SHF1 outer sheath, providing excellent electrical performance, mechanical protection, and fire resistance. It complies with various IEC standards, making it suitable for critical applications requiring high reliability and safety.

Technical Data

• Conductor: Bare (optional tinned) copper, class 5 according to IEC 60228
• Insulation: HF XLPE compound according to IEC 60092-360. Thickness according to IEC 60092-353
• Core Identification: 1 core: black
  2 cores: brown, blue
  3 cores: black, grey, brown or (blue, brown, green/yellow)
  4 cores: brown, black, grey, blue or green/yellow
  5 cores: blue, brown, black, grey, black or green/yellow
  From 5 cores: black numbered (with or without green/yellow)
• Bedding: Yarn fillers and non-hygroscopic tape or extruded inner sheath without halogen
• Armouring: Bare copper wire braid (upon request tinned copper or galvanized steel wire braid). Minimum coverage 90%
• Outer Sheath: Compound SHF1 according to IEC 60092-360. Thickness according to IEC 60092-353. Colour: black (or other colour agreed). Outer diameter according to IEC 60092-350 annex D
• Marking: UNIKA (Italy) – SH-PC-A 0,6/1 kV 90°C (core number) x (cross-section) – IEC 60092-353 – IEC 60332-3-22 – traceability code
• Rated conductor temperature for fixed installation: 90°C
• Minimum installation temperature: -15°C
• Minimum bending radius: 6D (D is the overall diameter)
• Screening attenuation: ≥ 60 dB according to EN50289-1-6
• Fire behaviour:
  • IEC 60332-3-22 not fire propagation
  • IEC 60332-1-2 not flame propagation
  • IEC 60754-1 halogen content
  • IEC 60754-2 pH and conductivity
  • IEC 60684-2 fluorine content
  • IEC 61034 smoke emission

SKU LAPP-N1189
MPN N1189
