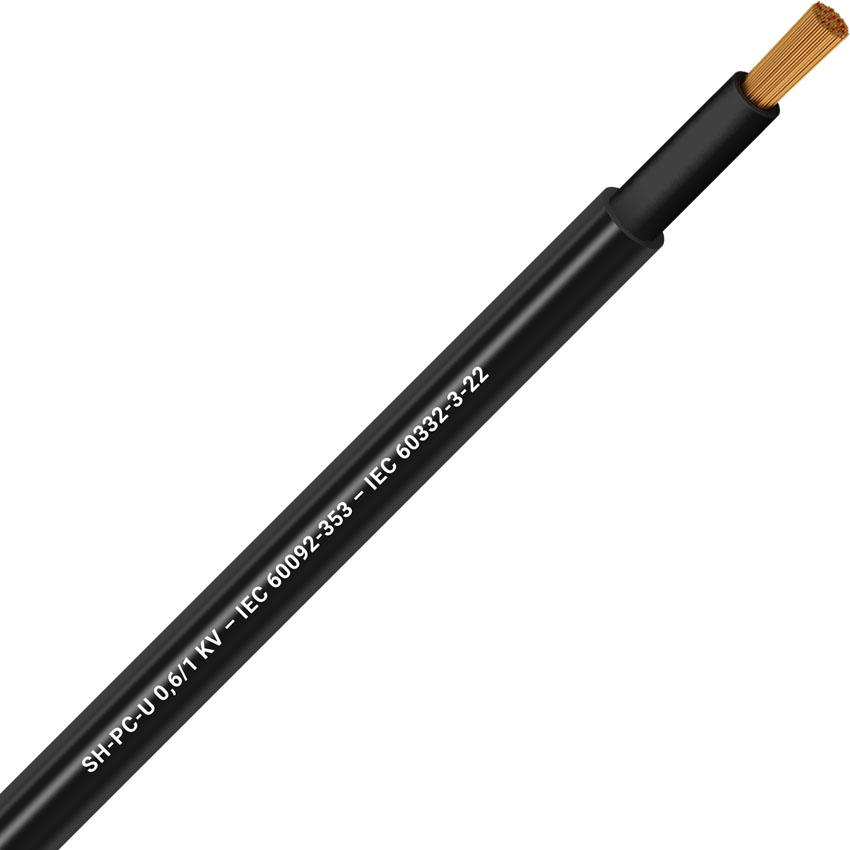

Unarmoured Single Core 1x185 Black

SH-PC-U

Halogen-free power and control cable for fixed installation, suitable for marine and offshore applications.

The SH-PC-U cable is designed for power and control circuits in marine and offshore environments. It features a halogen-free construction, ensuring safety in case of fire by limiting smoke emission and toxic gas release. The cable is compliant with various international standards, including IEC 60092 series, ensuring its suitability for demanding applications. It has good fire resistance and can withstand a temperature range of -15°C to 90°C.

Technical Data

• Conductor Bare (optional tinned) copper, class 5 according to IEC 60228
• Insulation HF XLPE compound according to IEC 60092-360. Thickness according to IEC 60092-353
• Core Identification (preferential)
  • 1 core: black
  • 2 cores: brown, blue
  • 3 cores: black, grey, brown or (blue, brown, green/yellow)
  • 4 cores: brown, black, grey, blue or green/yellow
  • 5 cores: blue, brown, black, grey, black or green/yellow
  • From 5 cores: black numbered (with or without green/yellow)
• Bedding Yarn fillers and non-hygroscopic tape or extruded halogen-free inner sheath
• Outer Sheath SHF1 compound according to IEC 60092-360. Thickness according to IEC 60092-353. Colour: black (or other colour agreed). Outer diameter according to IEC 60092-350 annex D
• Marking UNIKA (Italy) - SH-PC-U 0,6/1 kV 90°C (core number) x (cross-section) - IEC 60092-353 - IEC 60332-3-22 - traceability code
• Rated Conductor Temperature for Fixed Installation 90°C
• Minimum Installation Temperature -15°C
• Minimum Bending Radius (according to IEC 60092-352 table 4)
  • 4D for cables having overall diameter not above 25 mm
  • 6D for cables having overall diameter above 25 mm with D the overall diameter
• Fire Behaviour
  • IEC 60332-3-22 not fire propagation
  • IEC 60332-1-2 not flame propagation
  • IEC 60754-1 halogen content
  • IEC 60754-2 pH and conductivity
  • IEC 60684-2 fluorine content
  • IEC 61034 smoke emission

SKU LAPP-N201N
MPN N201N
