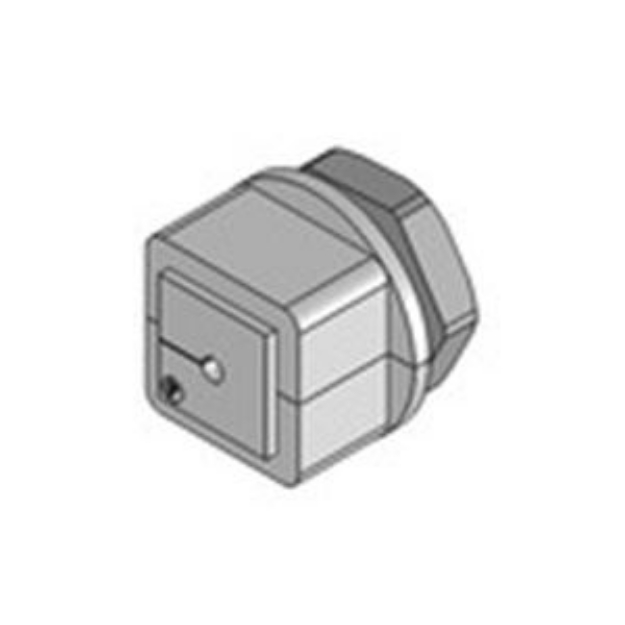

Split Gland KVT 25

Overview

KVT is a circular split cable gland for quick and easy installation and sealing (IP54) of cables or complete cable harnesses.

The split grommet matching the cable diameter is placed around the cable and inserted into the cable entry frame.

Polyamide locknuts are included in the shipment. For routeing D-Sub, DVI or PROFIBUS connectors in combination with the split cable glands KVT, special locknuts with cut-outs are required.

Advantages

• Cable gland for routeing pre-terminated cables
• Warranty on pre-terminated cables remains
• Retrofitting and maintenance can be carried out easily and quickly
• Suitable for standard or metric cut-outs

Specifications

• IP protection class: IP54
• Material: Polycarbonate
• Colour: grey (similar RAL 7035)
• Flame class: UL94-V0, self-extinguishing
• Temperature: -30 - 100 °C (static)
• Properties: Halogen free, Silicone free
• Mounting type: Screwing with locknut
• PU: 10 pieces
• Assembly with grommets:
• Height: 35 mm
• Mounting height: 20.5 mm
• Cut-out size round: Ø 25.3 0.2 mm
• Thread: M 25x1.5
• Thread length: 14 mm
