New MOXA Technologies For 2020 From ECS

Uninterrupted LTE Connectivity & Solar Energy Efficiency.

As an Industrial Engineer or Integrator, you already face enough challenges from the exacting requirements and tough conditions you face from demanding applications. Network technology should be making your life easier, not more difficult. This month, we look at some of the new technologies from Moxa that aim to keep things simple.

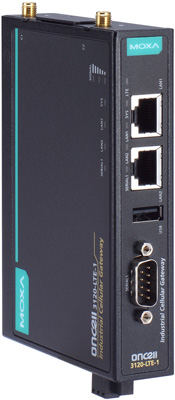

	OnCell 3120-LTE-1 Series Industrial LTE Cat 1 cellular gateways   DATASHEET DOWNLOAD    Low power consumption (40 mW in standby)  GuaranLink for reliable cellular connectivity  Dual cellular operator backup with dual-SIM  Rugged hardware design well suited for hazardous locations (ATEX Zone 2/IECEx)  VPN secure connection capability with IPsec, GRE, and OpenVPN protocols

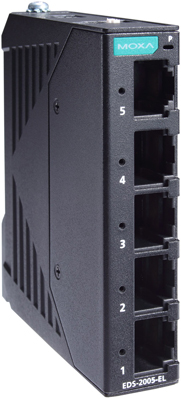

	EDS-2005-EL Series 5-port entry-level unmanaged Ethernet switches with metal housing   DATASHEET DOWNLOAD   10/100BaseT(X) (RJ45 connector) Compact size for easy installation QoS supported to process critical data in heavy traffic IP40-rated metal housing -40 to 75°C wide operating temperature range (-T models)

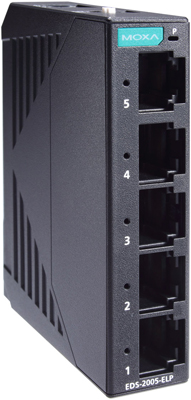

	EDS-2005-ELP Series 5-port entry-level unmanaged Ethernet switches with plastic housing   DATASHEET DOWNLOAD   10/100BaseT(X) (RJ45 connector) Compact size for easy installation QoS supported to process critical data in heavy traffic IP40-rated plastic housing

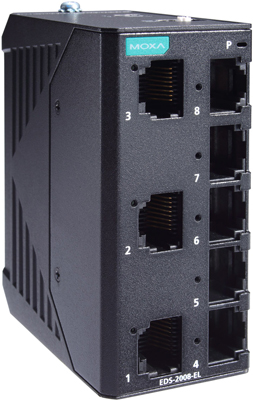

	EDS-2008-EL Series 8-port entry-level unmanaged Ethernet switches with metal housing   DATASHEET DOWNLOAD   10/100BaseT(X) (RJ45 connector) Compact size for easy installation QoS supported to process critical data in heavy traffic IP40-rated metal housing -40 to 75°C wide operating temperature range (-T models)

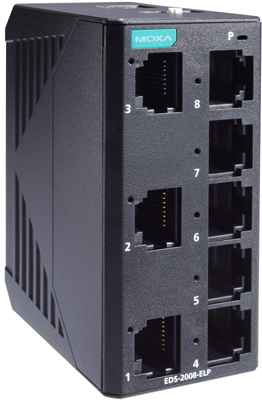

	EDS-2008-ELP Series 8-port entry-level unmanaged Ethernet switches with plastic housing   DATASHEET DOWNLOAD   10/100BaseT(X) (RJ45 connector) Compact size for easy installation QoS supported to process critical data in heavy traffic IP40-rated plastic housing

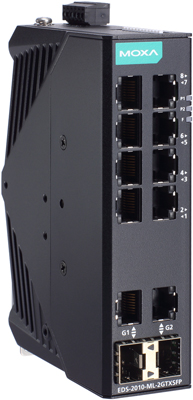

	EDS-2010-ML Series 8+2G-port Gigabit unmanaged Ethernet switches   DATASHEET DOWNLOAD   2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation QoS supported to process critical data in heavy traffic Relay output warning for power failure and port break alarm IP30-rated metal housing Redundant dual 12/24/48 VDC power inputs -40 to 75°C operating temperature range (-T models)

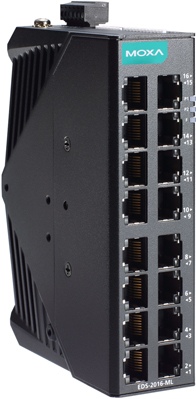

	EDS-2016-ML Series 16-port unmanaged Ethernet switches   DATASHEET DOWNLOAD   10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connectors) QoS supported to process critical data in heavy traffic Relay output warning for power failure and port break alarm IP30-rated metal housing Redundant dual 12/24/48 VDC power inputs -40 to 75°C operating temperature range (-T model)

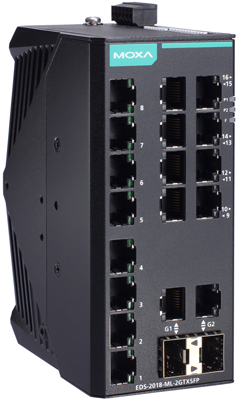

	EDS-2018-ML Series 16+2G-port Gigabit unmanaged Ethernet switches   DATASHEET DOWNLOAD   2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation QoS supported to process critical data in heavy traffic Relay output warning for power failure and port break alarm IP30-rated metal housing Redundant dual 12/24/48 VDC power inputs -40 to 75°C operating temperature range (-T models)
	PT-7528 Series IEC 61850-3 28-port Layer 2 managed rackmount Ethernet switches   DATASHEET DOWNLOAD   IEC 61850-3, IEEE 1613 (power substations) compliant Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA Noise Guard™ wire speed zero packet loss technology Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), Gigabit Ethernet recovery time < 50 ms RSTP/STP, and MSTP for network redundancy Isolated redundant power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range -40 to 85°C operating temperature range
	NPort S9650I Series 8/16-port rugged device server with managed Ethernet switch   DATASHEET DOWNLOAD   Supports up to 4 managed Ethernet switch ports (fiber available with some optional network modules) 8/16-port RS-232/422/485 serial interface Supports DNP3 and Modbus protocols Ethernet redundancy with Turbo Ring/Chain and RSTP/STP supported Real COM/TTY drivers for Windows and Linux IEC 61850-3, IEEE 1613 (power substations) compliant IEEE 1588v2 and IRIG-B time synchronization functions Supports IEC 61850 MMS protocol Security features based on IEC 62443/NERC CIP -40 to 85°C wide operating temperature

Enquire about any of these new MOXA Networking products and more by filling out the form below, phone us on 0800 849 2211 or email sales@ecsnz.com.
