LAPP AS/NZS Fire Rated 3013 Multicore Cable - Available Now
Performs Under Fire Keeping Essential Systems Running
(AS/NZS 3013 X-HF-110/HFS-110-TP)
Built on LAPP’s global quality, engineering, and manufacturing expertise, AS/NZS approvals, and WS52W fire rating, our new range of Fire Rated Multicore Cable delivers reliable performance for an extensive range of essential services and critical infrastructure applications.
Made for demanding commercial and industrial environments, it complies with AS/NZS 3013 and AS/NZS 5000.1, supporting installations where maintaining operation during an emergency is critical. Available in numbered and coloured cores, with a rated voltage of 0.6 / 1kV, sizes range from 1.5 mm² up to 95 mm², it also features Low Smoke Zero Halogen (LSZH) construction, reducing smoke density and corrosive gas emissions to support safer evacuation conditions in enclosed environments.

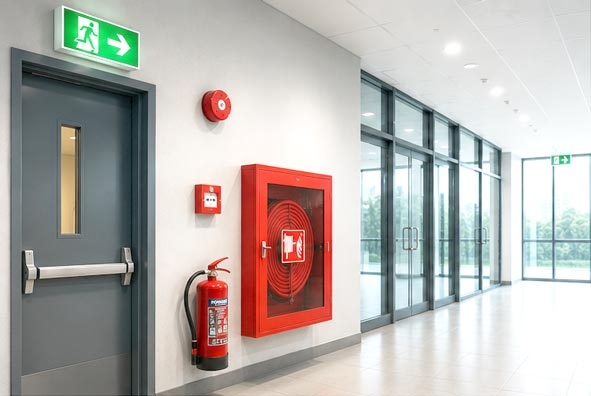

Engineered For Compliance & Safety
Manufactured to stringent local and international standards, the range includes AS/NZS 5000.1 and AS/NZS 3013 compliance. It utilises bare copper conductors in accordance with IEC 60228 Class 5, with an HFS-110-TP outer sheath and X-HF-110 insulation system. Core configurations vary by size, with 3, 4, and 5 core options supplied in red, white, blue, black, and green/yellow colour coding, while configurations above 5 cores are supplied with white cores and black numbering for clear identification.
Designed For Reliable Performance

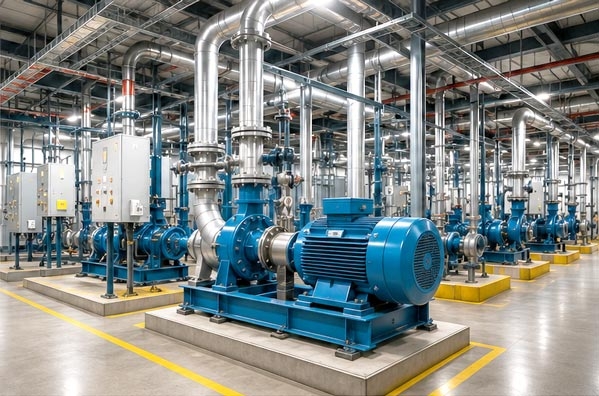

Combines fire resistance, mechanical durability, and installation flexibility to support reliable long-term performance across commercial and industrial environments. Temperature operating range is -25°C to 110ºC, with WS52W fire retardant performance and IEC 60332-3-24 flame retardant compliance. The range is rated at 600/1000 V and maintains a minimum bending radius of 8 x OD for installation flexibility.
From Control Circuits to Heavy Power
This extended portfolio also boasts a broad range of sizes, allowing a single fire-rated solution to support multiple application requirements. From 1.5 mm² control and signalling cables through to heavy-duty power and distribution sizes up to 95 mm² with auxiliary conductor options, this enables consistent specification across control and signalling systems, building services infrastructure, medium-load distribution applications, and heavy-duty essential services power circuits.
For Critical Infrastructure Applications

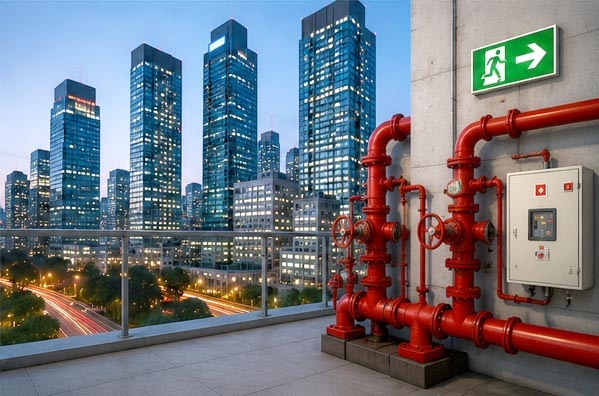

Suited to installations where maintaining operation during a fire is essential, including emergency lighting systems, fire alarm systems, high-rise building essential services, and fire pumps and sprinkler systems. Designed to support essential circuits that must remain operational for evacuation, emergency response, and fire suppression activities. It is particularly suited to high-density commercial buildings, industrial facilities, and infrastructure projects.
Quick Reference Guide
Technical Snapshot
- Standards
- AS/NZS 5000.1, AS/NZS 3013
- Conductor
- Bare copper wire according to IEC 60228 Class 5
- Outer Sheath
- HFS-110-TP
- Insulation
- X-HF-110
- Core Colour
- 3 / 4 / 5 Core – Colored Red, White, Blue, Black, Green/Yellow
>5 Cores – White cores with Black numbers
Performance
- Temperature
- -25°C to +90°C
- Fire Retardant
- WS52W
- Flame Retardant
- IEC 60332-3-24
- Rated Voltage
- 600/1000 V
- Bending Radius
- 8 × OD
Best-Fit Applications
- Emergency lighting systems
- Fire alarm systems
- High-rise building essential services
- Fire pumps and sprinkler systems
Why It Wins
- Complies with AS/NZS fire standards
- Maintains power during fire
- Keeps essential systems running
- Ensures safe evacuation
Initial Stocked Range
- 3G
- (2 Core + Earth) 1.5 / 2.5 / 4 / 6 mm²
- 4G
- (3 Core + Earth) 1.5 / 2.5 mm²
- 5G
- (4 Core + Earth) 2.5 / 4 / 6 / 10 / 16 mm²
- 6 Core
- (No Earth) 1.5 mm²
- 10 Core
- (No Earth) 1.5 mm²
- 12G
- (11 Core + Earth) 1.5 mm²
*Many more sizes available, up to 95mm².
A Winning Combination
When essential infrastructure depends on uninterrupted power, cable performance becomes critical.
By combining WS52W fire resistance, AS/NZS compliance, LSZH safety characteristics, and trusted LAPP-quality German engineering, our new LAPP Fire Rated Multicore Cable range delivers a dependable solution for essential services installations. It complies with AS/NZS fire standards, maintains power during fire, keeps essential systems running, and ensures safe evacuation.
SHOP NOW
Dimensional Data
|
|
|
|
|
|
|
|
Conductor
|
Bare copper wire according to IEC 60228 Class 5
|
|
Rated Voltage
|
600/1000V
|
|
Fire resistance Layer
|
MGT
|
|
Test Voltage
|
AC 3500V/5min
|
|
Insulation
|
X-HF-110
|
|
Temperature Range
|
-250C to +1100C
|
|
Core Colour
|
3 Core Red, Black, Green/Yellow
|
|
Min. Insulation Resistance
|
1000MΩ·km @ 20℃
|
|
4 Core Red, Blue, White, Green/Yellow
|
|
Min. Bending Radius
|
8D
|
|
5 Core Red, Blue, White, Black, Green/Yellow
|
|
Flame Retardant
|
IEC 60332-3-24
|
|
>5 Core White cores with black numbers
|
|
Fire Retardant
|
WS52W
|
|
Laying up
|
Cores stranded in layers with optimal lay-length, PET tape
|
|
|
|
|
Outer Sheath
|
HFS-110-TP
|
|
|
|
|
Sheath Colour
|
Red, RAL 3000
|
|
|
|
|
|
Part No.
|
No. of core(s) and
conductor cross-section
mm²
|
Nominal
Insulation thickness
mm
|
Nominal
Sheath thickness
mm
|
Outer Diameter
mm ± 10%
|
Conductor
resistance at
20℃ Ω/KM
|
|
|
3G1.5
|
0.7
|
1.8
|
13.8
|
13.3
|
|
|
4G1.5
|
0.7
|
1.8
|
15.1
|
13.3
|
|
810003017
|
5G1.5
|
0.7
|
1.8
|
16.4
|
13.3
|
|
810003040
|
6x1.5
|
0.7
|
1.8
|
17.8
|
13.3
|
|
810003018
|
7G1.5
|
0.7
|
1.8
|
17.8
|
13.3
|
|
810003041
|
10x1.5
|
0.7
|
1.8
|
22.5
|
13.3
|
|
810003019
|
12G1.5
|
0.7
|
1.8
|
23.2
|
13.3
|
|
810003020
|
18G1.5
|
0.7
|
1.8
|
27.1
|
13.3
|
|
|
3G2.5
|
0.7
|
1.8
|
14.9
|
7.98
|
|
|
4G2.5
|
0.7
|
1.8
|
16.2
|
7.98
|
|
|
5G2.5
|
0.7
|
1.8
|
17.7
|
7.98
|
|
|
2X4 +1X2.5
|
0.7
|
1.8
|
15.7
|
4.95
|
|
0.7
|
7.98
|
|
810003025
|
4G4
|
0.7
|
1.8
|
17.6
|
4.95
|
|
|
4X4 +1X2.5
|
0.7
|
1.8
|
18.9
|
4.95
|
|
0.7
|
7.98
|
|
|
2X6 +1X2.5
|
0.7
|
1.8
|
16.6
|
3.3
|
|
0.7
|
7.98
|
|
810003028
|
4G6
|
0.7
|
1.8
|
19.0
|
3.3
|
|
|
4X6 +1X2.5
|
0.7
|
1.8
|
20.2
|
3.3
|
|
0.7
|
7.98
|
|
810003030
|
4G10
|
0.7
|
1.8
|
21.5
|
1.91
|
|
|
4X10 +1X4
|
0.7
|
1.8
|
22.8
|
1.91
|
|
0.7
|
4.95
|
|
810003032
|
4G16
|
0.7
|
1.8
|
24.2
|
1.21
|
|
|
4X16 +1X6
|
0.7
|
1.8
|
25.5
|
1.21
|
|
0.7
|
3.3
|
|
810003034
|
4G25
|
0.9
|
1.8
|
28.5
|
0.78
|
|
810003035
|
4X25 + 1X6
|
0.9
|
1.8
|
29.3
|
0.78
|
|
0.7
|
3.3
|
|
810003036
|
4X35 + 1X10
|
0.9
|
1.9
|
32.8
|
0.554
|
|
0.7
|
1.91
|
|
810003037
|
4X50 + 1X16
|
1.0
|
2.0
|
37.4
|
0.386
|
|
0.7
|
1.21
|
|
810003038
|
4X70 + 1X25
|
1.1
|
2.1
|
43.0
|
0.272
|
|
0.9
|
0.78
|
|
810003039
|
4X95 + 1X25
|
1.1
|
2.3
|
47.2
|
0.206
|
|
0.9
|
0.78
|
Need help selecting the right cable?
Our experienced team of electrical engineers can help you choose the right option for your install. Speak with a knowledgeable ECS sale team member for product selection support, stock availability, quote requests, cable size enquiries and additional sizes on request, or shop online.
