LAPP VSD ECO Cable Range – The smart, economical choice for screened VSD motor cabling in industrial applications.
ECONOMICAL • SCREENED • UV RESISTANT • DESIGNED FOR VSD APPLICATIONS
LAPP VSD ECO has been developed as a more cost-effective alternative to the established LAPP ULTRA VSD range, while maintaining the core features required for dependable variable speed drive applications across industrial environments.
Designed for inverter-driven motor systems, the new VSD ECO range provides a practical balance of performance, flexibility, and value for projects where reliable screened motor cabling is required while working within tighter budgets.
The range features aluminium foil screening combined with tinned copper braid coverage to help reduce electrical interference in variable speed drive installations, supporting stable motor performance across a wide range of industrial applications.

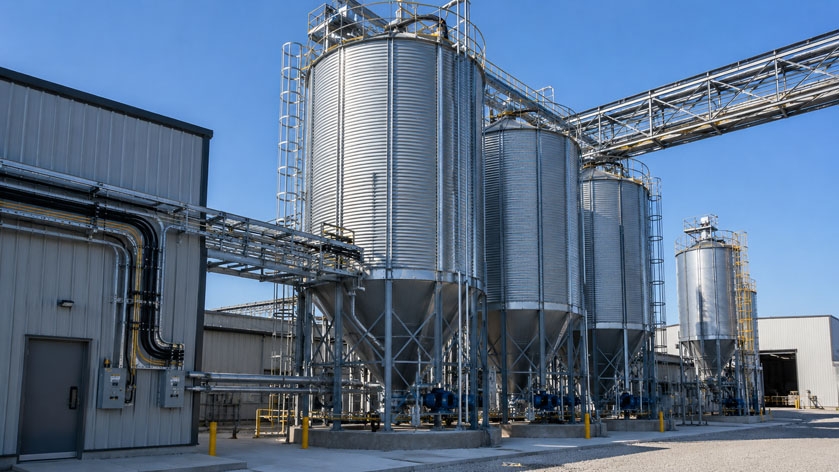

Built to AS/NZS 5000.1, the cable combines flexible Class 5 copper conductors with a UV resistant outer sheath suitable for indoor and outdoor industrial installations exposed to demanding operating conditions.
LAPP VSD ECO has been introduced to provide contractors, panel builders, OEMs, and industrial customers with greater flexibility when selecting a dependable VSD cable solution that delivers strong value without compromising the core requirements of modern drive systems.

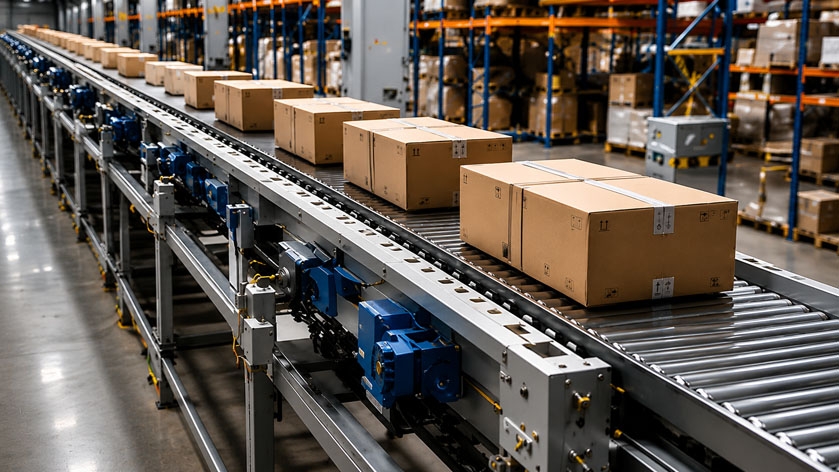

Typical applications include VSD motor connections, HVAC systems, pumps, compressors, conveyors, industrial automation equipment, and OEM machinery installations where screened cable construction is required.
Initial launch stock includes practical high-runner sizes, with larger conductor sizes available up to 300mm² to support a broad range of industrial power and automation projects.
Typical Applications
Quick Reference Guide
- DOUBLE SCREENED
- Aluminium foil plus tinned copper braid
- ECO
- Designed as a cost-effective VSD cable solution
- Conductor
- Fine stranded Class 5 copper
- Outer Sheath
- UV resistant PVC compound
- Standards
- AS/NZS 5000.1
- Screen
- Foil + tinned copper braid
- Rated Voltage
- 600/1000V
- Flame Retardant
- IEC 60332-1-2
- Temperature
- -15°C to +90°C
- Bending Radius
- 15 × OD flexing / 4 × OD fixed
- EMC Shielding
- Double screened
- Outdoor Use
- UV resistant

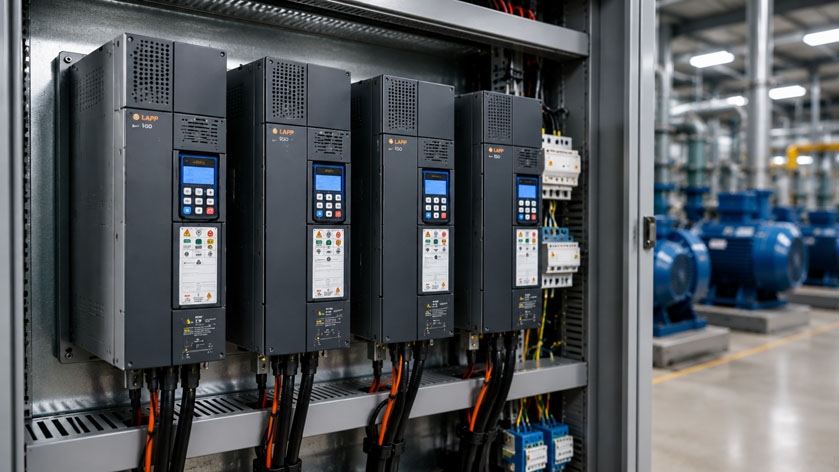

- VSD motor systems

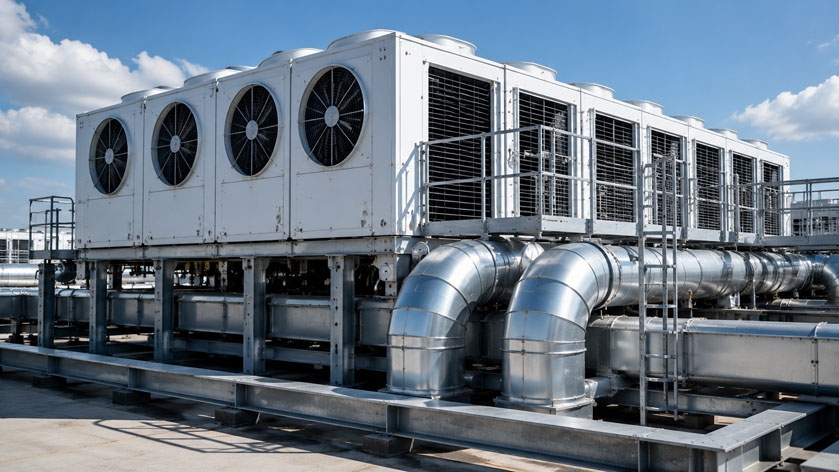

- HVAC installations

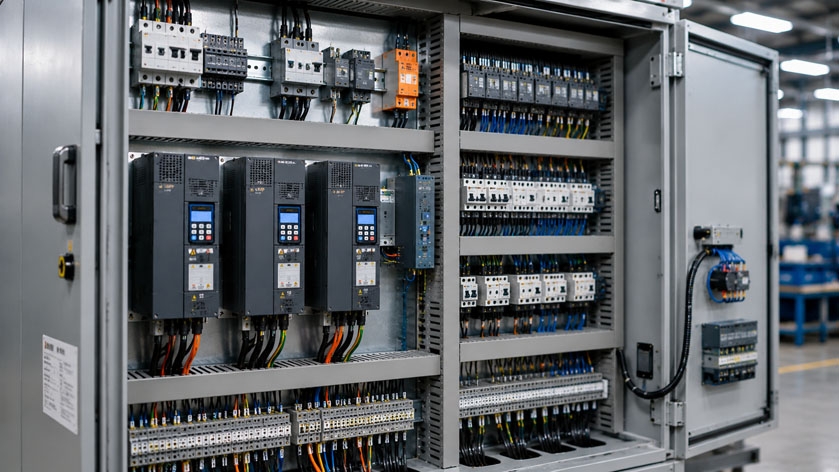

- OEM control panels

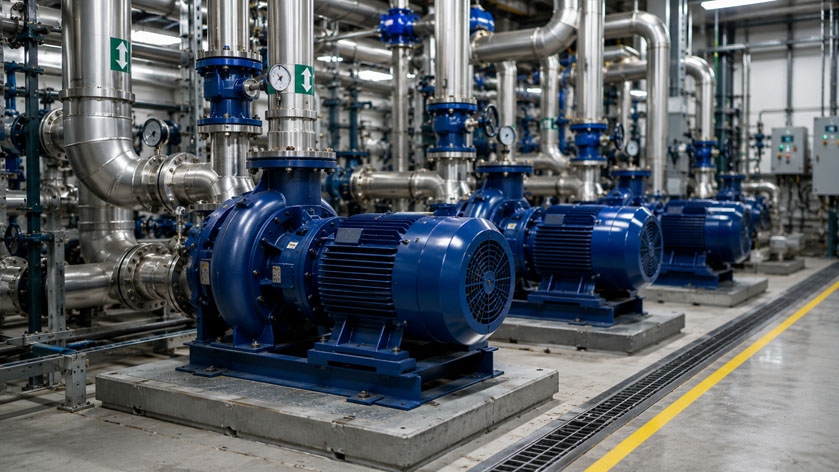

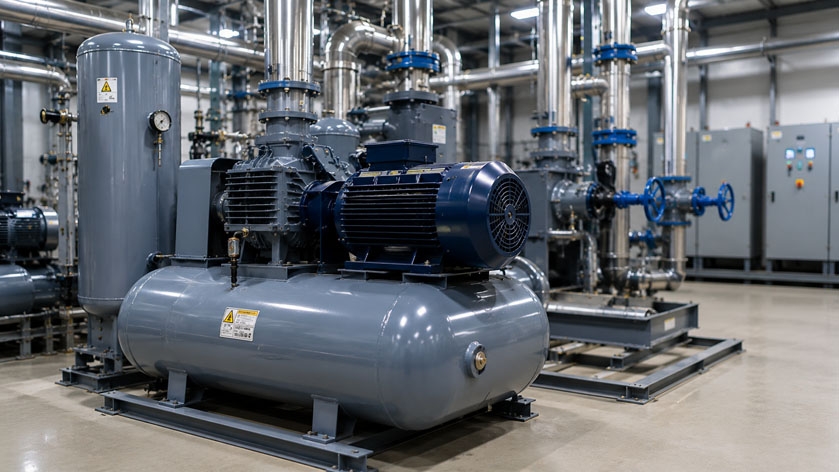

- Pumps and compressors
- Industrial motor feeds
- Cost-effective screened VSD solution
- Flexible installation handling
- Local launch stock available
- Strong EMC shielding performance
- 4G
- 1.5 / 2.5 / 4 mm²
- 3 Core + Earth
- 6 / 10 / 16 / 25 / 35 mm²
Smart, Economical EMC Protection for Industrial Drives
LAPP VSD ECO combines double-screened EMC protection, flexible Class 5 conductors, and UV resistant construction into a practical and cost-effective VSD motor cable solution.
Built for industrial motor control applications, the VSD ECO range delivers dependable screened performance for inverter-driven systems including pumps, fans, compressors, HVAC systems, and OEM machinery installations.
Dimensional Data |
||||||
|---|---|---|---|---|---|---|
|
|
||||||
Initial Stock List is linked - For other sizes, contact the team. |
||||||
| Part Number | Core Configuration (cores + mm2) |
Nominal |
Tinned Copper Wire Diameter (mm) |
Nominal Sheath Thickness (mm) |
Approx. Outer Diameter (mm) |
Conductor Resistance @ 20°C (Ω/km) |
| 810004000 | 4G1.5 | 0.8 | 0.2 | 1.8 | 12.4 | 13.3 |
| 0.8 | 13.3 | |||||
| 810004002 | 4G2.5 | 0.8 | 0.2 | 1.8 | 13.5 | 7.98 |
| 0.8 | 7.98 | |||||
| 810004003 | 4G4 | 1 | 0.2 | 1.8 | 15.8 | 4.95 |
| 1 | 4.95 | |||||
| 810004004 | 3X6 + 3G1.5 | 1 | 0.2 | 1.8 | 17.3 | 3.3 |
| 0.8 | 13.3 | |||||
| 810004005 | 3X10 + 3G1.5 | 1 | 0.25 | 1.8 | 18.9 | 1.91 |
| 0.8 | 13.3 | |||||
| 810004006 | 3X16 + 3G2.5 | 1 | 0.25 | 1.8 | 21.2 | 1.21 |
| 0.8 | 7.98 | |||||
| 810004007 | 3X25 + 3G4 | 1.2 | 0.25 | 1.8 | 25.2 | 0.78 |
| 1 | 4.95 | |||||
| 810004008 | 3X35 + 3G6 | 1.2 | 0.3 | 1.8 | 28.0 | 0.554 |
| 1 | 3.3 | |||||
| 810004009 | 3X50 + 3G10 | 1.4 | 0.3 | 1.9 | 33.0 | 0.386 |
| 1 | 1.91 | |||||
| 810004010 | 3X70 + 3G10 | 1.4 | 0.3 | 2 | 36.5 | 0.272 |
| 1 | 1.91 | |||||
| 810004011 | 3X95 + 3G16 | 1.6 | 0.3 | 2.1 | 41.3 | 0.206 |
| 1 | 1.21 | |||||
| 810004012 | 3X120 + 3G16 | 1.6 | 0.3 | 2.2 | 45.3 | 0.161 |
| 1 | 1.21 | |||||
| 810004013 | 3X150 + 3G25 | 1.8 | 0.4 | 2.4 | 50.7 | 0.129 |
| 1.2 | 0.78 | |||||
| 810004014 | 3X185 + 3G35 | 2 | 0.4 | 2.5 | 55.5 | 0.106 |
| 1.2 | 0.554 | |||||
| 810004015 | 3X240 + 3G50 | 2.2 | 0.4 | 2.7 | 63.0 | 0.0801 |
| 1.4 | 0.386 | |||||
| 810004016 | 3X300 + 3G50 | 2.4 | 0.4 | 2.9 | 69.3 | 0.0641 |
| 1.4 | 0.386 | |||||
Need help selecting the right VSD cable?
Our experienced team of electrical engineers can help you choose the right option for your install. Speak with one of our knowledgeable sales team members for product selection support, stock availability, quote requests, cable size enquiries and additional sizes on request, or shop online.
