New Larger XLPE Sizes Added to the LAPP POWER NS Neutral Screen Range - Available Now.
ROBUST, XLPE, AS/NZS 4961, Available in conductor sizes up to 95mm²
LAPP has expanded its LAPP POWER NS Neutral Screen portfolio with the addition of larger XLPE-insulated conductor sizes, providing a robust direct-burial solution for power distribution applications across industrial, commercial, infrastructure, and residential projects.
The expanded range complements LAPP's established PVC Neutral Screen offering and now includes conductor sizes up to 95mm², giving contractors, consultants, and asset owners greater flexibility when specifying larger power distribution circuits.
Designed and certified to AS/NZS 4961, LAPP POWER NS combines proven performance with the quality, engineering, and manufacturing expertise that has made LAPP a trusted name in cable technology worldwide.
Suitable for direct burial installations, the cable features durable X-90 XLPE insulation and a robust 5V-90 PVC outer sheath with a nominal sheath thickness of 3.2mm. The construction is designed to withstand demanding installation environments while helping reduce installation costs by eliminating the need for additional ducting in many underground applications.
The integrated bare copper wire screen serves as a neutral conductor in AC applications or can be utilised as a protective screen, providing additional safety and system reliability. This makes the range ideal for applications including industrial power distribution, machinery power feeds, switchboard connections, street lighting circuits, and main power supplies for buildings and residential developments.
Built with Class 2 bare annealed copper conductors and neutral screens, LAPP POWER NS is rated to 600/1000V and supports operating temperatures up to 90°C. The UV-resistant outer sheath also makes the cable suitable for outdoor installations where long-term environmental durability is required.
Initial local stock includes single-core constructions in 10mm², 16mm², and 25mm², along with 4-core 25mm² variants, with many additional sizes available to support larger project requirements.
For projects requiring larger neutral screen power cables with direct-burial capability, the expanded LAPP POWER NS XLPE range delivers a dependable, standards-compliant solution backed by LAPP's global reputation for quality and performance.
Typical Applications
Quick Reference Guide
- ROBUST
- 3.2mm sheath, direct-burial compliant to AS/NZS standards
- LARGER
- Available in conductor sizes up to 95mm²
- Insulation
- XLPE
- Coloured Cores
- Red, White, Blue, Black
- Standards
- AS/NZS 4961
- Conductor / Neutral Screen
- Bare annealed copper, Class 2
- Outer Sheath
- PVC compound (5V-90)
- Insulation
- XLPE compound (X-90)
- Temperature
- Max. 90°C
- Bending Radius
- 12 × OD
- Rated Voltage
- 600/1000 V
- Outdoor Use
- UV resistant

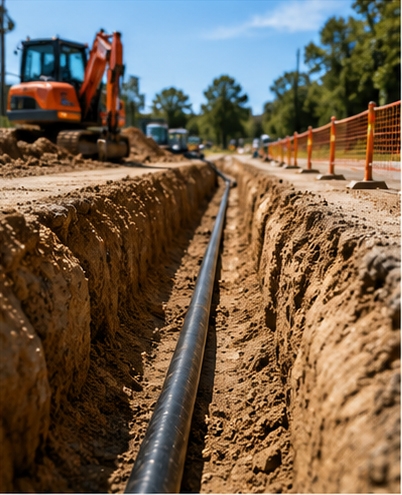

- Underground/direct burial installations

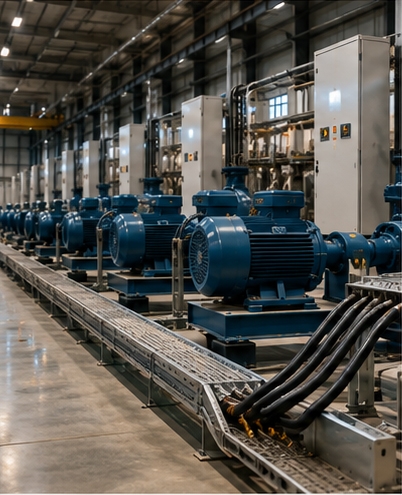

- Industrial power distribution
- Industrial machinery power feeds

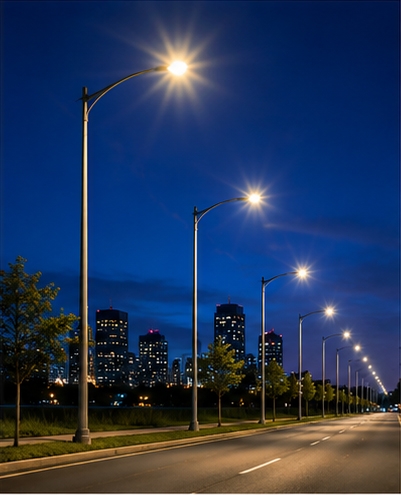

- Street lighting circuits
- Switchboard and panel feeds
- Underground installation without ducting
- Integrated copper screen acts as a fail-safe earth/neutral
- Single Core
- 10 / 16 / 25 mm²
- 4 Core
- 25 mm²
Larger Sizes for Bigger Jobs, Above & Below Ground
New larger XLPE sizes extend the LAPP POWER NS range, delivering dependable performance where power distribution demands more capacity and flexibility, and reliabliltiy underground.

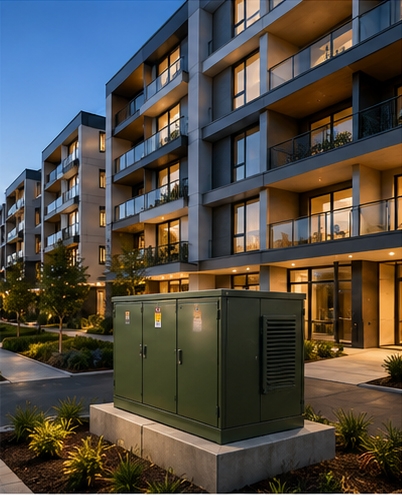

Designed as a complement to the established PVC range, LAPP POWER NS XLPE cables combine robust construction, AS/NZS 4961 compliance, and a heavy-duty neutral screen for safe and reliable power distribution in demanding environments. Built for direct burial and outdoor installation, the range supports industrial infrastructure, street lighting networks, building mains supplies, and machinery power feeds, with conductor sizes now extended up to 95mm² for greater application coverage.
Dimensional Data | ||
|---|---|---|
Initial Stock List is linked - For other sizes, contact the team. | ||
| Part Number | No. of core(s) and conductor cross-section mm2 | Approx. Outer Diameter mm |
| 810009001 | 1 × 10 | 14.1 |
| 810009002 | 1 × 16 | 15.6 |
| 810009003 | 1 × 25 | 18.0 |
| 810009004 | 1 × 35 | 19.8 |
| 810009005 | 1 × 50 | 22.1 |
| 810009006 | 1 × 70 | 24.6 |
| 810009007 | 1 × 95 | 27.6 |
| 810009008 | 2 × 25 | 25.8 × 17.6 |
| 810009009 | 2 × 35 | 28.0 × 18.8 |
| 810009010 | 2 × 50 | 31.9 × 21.0 |
| 810009011 | 2 × 70 | 36.6 × 23.8 |
| 810009012 | 2 × 95 | 40.5 × 25.9 |
| 810009013 | 3 × 25 | 26.6 |
| 810009014 | 3 × 35 | 29.4 |
| 810009015 | 3 × 50 | 33.6 |
| 810009016 | 3 × 70 | 38.6 |
| 810009017 | 3 × 95 | 42.8 |
| 810009018 | 4 × 25 | 28.8 |
| 810009019 | 4 × 35 | 31.9 |
| 810009020 | 4 × 50 | 35.9 |
| 810009021 | 4 × 70 | 41.3 |
| 810009022 | 4 × 95 | 46.7 |
Need help selecting the right cable?
Our experienced team of electrical engineers can help you choose the right option for your install. Speak with one of our knowledgeable sales team members for product selection support, stock availability, quote requests, cable size enquiries and additional sizes on request, or shop online.
